DEA1X3F820JA3B

82pF 3.15kV SL Φ8.0mm

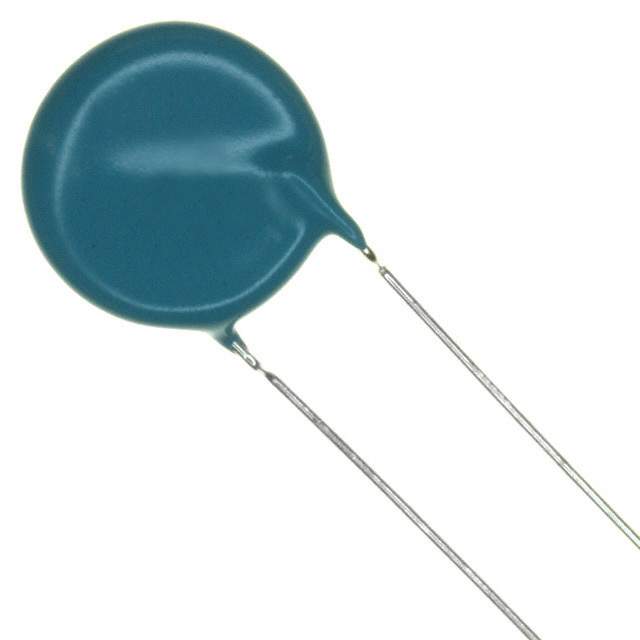

Look no further than the ceramic disc high frequency capacitor from Murata, a component that uses ceramic materials as a dielectric to allow for better heat dissipation. It can withstand a voltage of 3150 VDC. This high frequency capacitor has a maximum operating temperature of 125 °C. This part has a lead diameter of 0.6 mm and a pitch of 7.5 mm. This product is 6Max mm deep. The DEA1X3F820JA3B high frequency capacitor has a radial termination style. Its capacitance value is 82pF. It has a tolerance of 5%.
