680pF681 ±10% 300V X1,Y1 编带

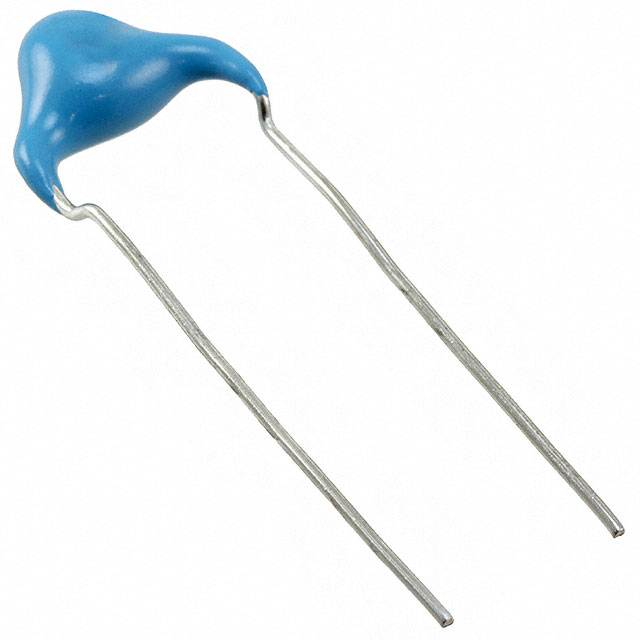

Install Murata"s high frequency capacitor to your electronic circuit in order to keep sensitive components safe from the damaging effects of voltage spikes. It can withstand a voltage of 300 VAC. This high frequency capacitor has a maximum operating temperature of 125 °C. This part has a lead diameter of 0.6 mm and a pitch of 10 mm. Its capacitance value is 680pF. This product is 7Max mm deep. It has a tolerance of 10%. The DE1B3KX681KN4AP01F high frequency capacitor has a radial termination style.
额定电压DC 300 V
电容 680 pF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±10 %
额定电压 300 VAC
安装方式 Through Hole
引脚数 2
封装 Through Hole,P=1...
引脚间距 10 mm
高度 7.0 mm
直径 Φ8.0mm
封装 Through Hole,P=1...
引脚间距 10 mm
材质 B
工作温度 -40℃ ~ 125℃
产品生命周期 Not For New Designs
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DE1B3KX681KN4AP01F muRata 村田 | 当前型号 | 当前型号 |
DE1B3KX681KA4BP01F 村田 | 完全替代 | DE1B3KX681KN4AP01F和DE1B3KX681KA4BP01F的区别 |
DE1B3KX681KB4BP01F 村田 | 完全替代 | DE1B3KX681KN4AP01F和DE1B3KX681KB4BP01F的区别 |
DE1B3KX681KA4BN01F 村田 | 功能相似 | DE1B3KX681KN4AP01F和DE1B3KX681KA4BN01F的区别 |
