680pF 250V B Φ8.0mm

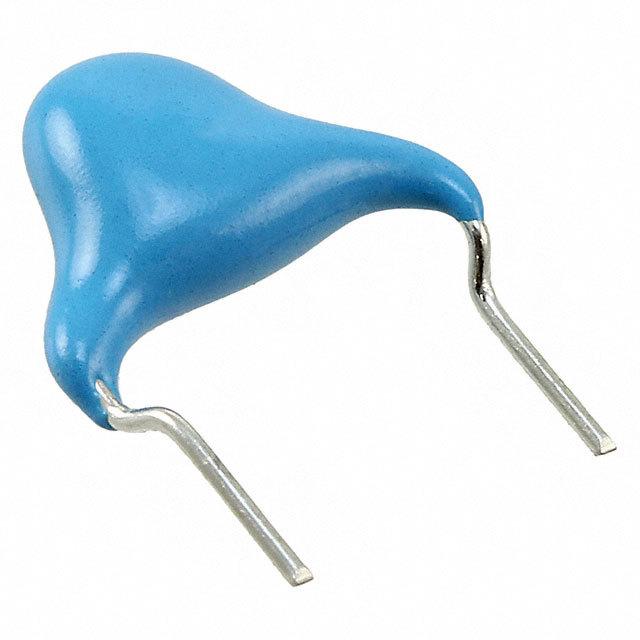

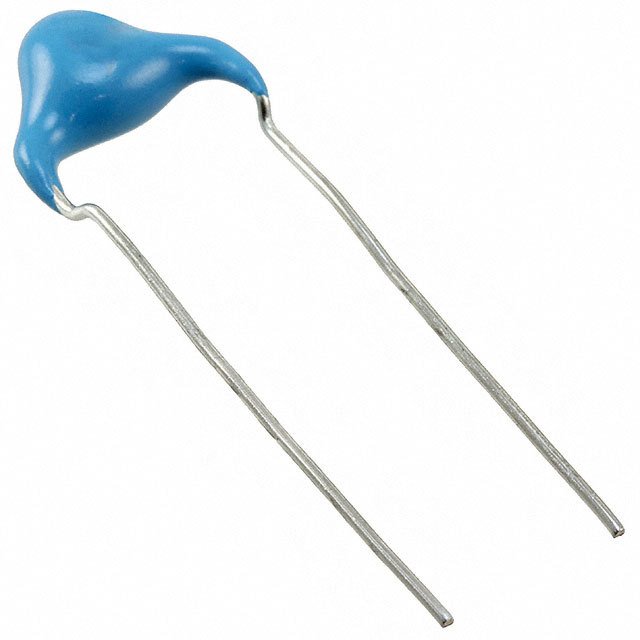

Look no further! This low cost ceramic disc high frequency capacitor from Murata is the perfect component for absorbing any harmful voltage spikes that may enter your device. It can withstand a voltage of 250 VAC. This high frequency capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 10%. Its capacitance value is 680pF. This part has a lead diameter of 0.6 mm and a pitch of 10 mm. This product is 7Max mm deep. The DE1B3KX681KB4BN01F high frequency capacitor has a radial termination style.
额定电压DC 250 V
电容 680 pF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
引脚间距 10 mm
长度 8 mm
宽度 7 mm
高度 7.0 mm
直径 Φ8.0mm
封装 Radial, Disc
引脚间距 10 mm
厚度 7 mm
材质 B
工作温度 -25℃ ~ 85℃
产品生命周期 Not For New Designs
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DE1B3KX681KB4BN01F muRata 村田 | 当前型号 | 当前型号 |
DE1B3KX681KA4BN01F 村田 | 类似代替 | DE1B3KX681KB4BN01F和DE1B3KX681KA4BN01F的区别 |
DE1B3KX681KA4BP01F 村田 | 功能相似 | DE1B3KX681KB4BN01F和DE1B3KX681KA4BP01F的区别 |
DE1B3KX681KB4BP01F 村田 | 功能相似 | DE1B3KX681KB4BN01F和DE1B3KX681KB4BP01F的区别 |
