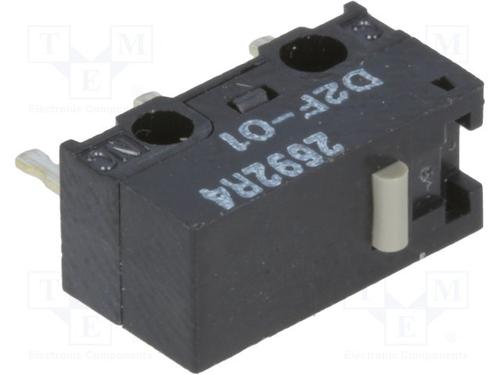

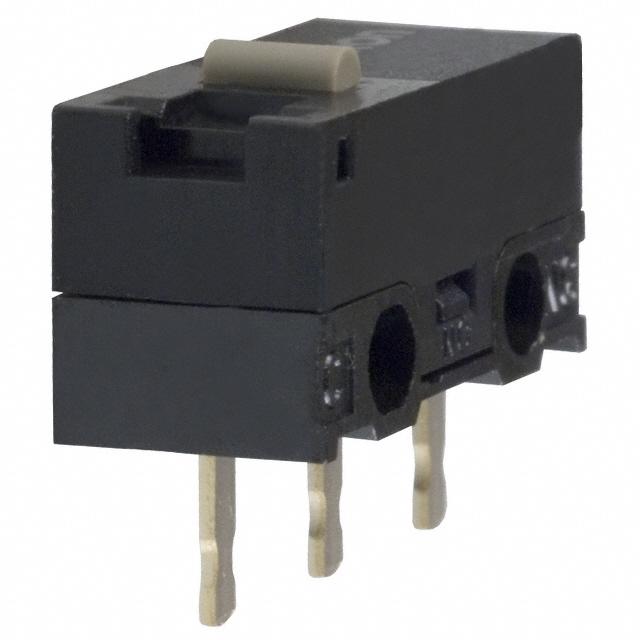

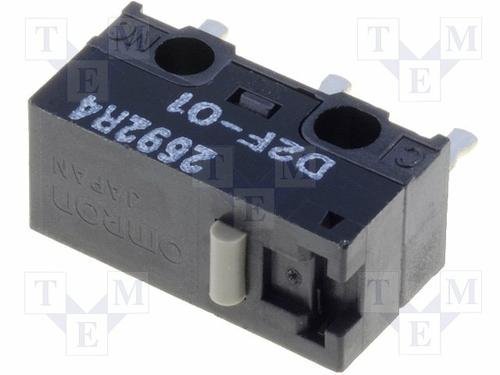

D2F-01

OMRON ELECTRONIC COMPONENTS  D2F-01  微动开关, D2F系列, SPDT, 焊接, 100 mA, 125 VAC, 30 VDC

超小型微动

扣合作用超小型微动开关，特别适用于家用电器、音响设备和通信设备。

符合 RoHs

触点额定值：银触点在 125V 交流时为 3A，金触点在 30V 直流时为 0.1A

单刀双掷触点配置

扣合作用

**认证：UL 和 CSA**

得捷:
SWITCH SNAP ACT SPDT 100MA 30V

欧时:
Omron D2F-01 单刀双掷 - 常开/常闭 引脚柱塞 微动开关, 100 mA @ 30 V 直流

立创商城:
D2F-01

贸泽:
Basic / Snap Action Switches PIN PLR STD uV/C PCB

艾睿:

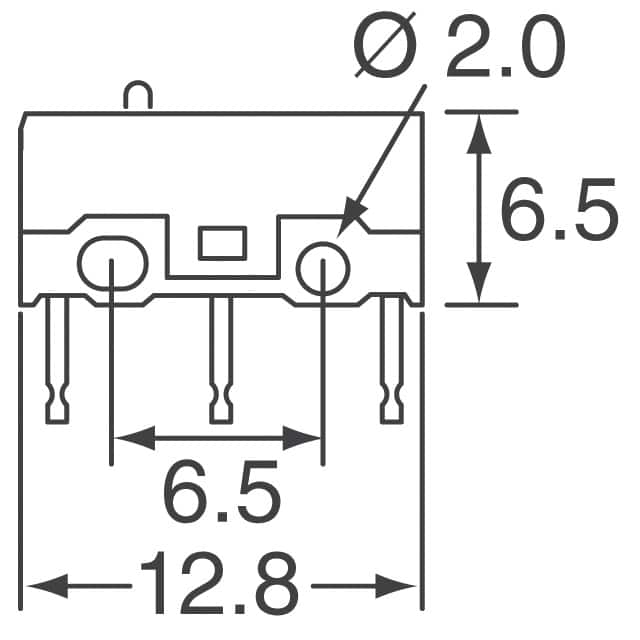

The D2F-01 snap-action switch from Omron makes opening or closing your circuit a fast operation. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 30VDC. This snap action switch has an operating temperature range of -25 °C to 85 °C. The D2F-01 snap action switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product is 12.8 mm long, 7.5 mm tall and 5.8 mm deep.

Allied Electronics:
Switch; Pin Plunger; 150 g; 3 A @ 125 VAC; 125 VAC⁄ 30 VDC; Snap Action

Jameco:
SWITCH,SUB,PCB,SPDT,MICR-V,UL/ CSA,PIN ACT,125V/3A150g

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 0.1A 30VDC 1.47N Thru-Hole

TME:
Microswitch; without lever; SPDT; 0.1A/30VDC; ON-ON; 1-position

Verical:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 0.1A 30VDC 1.47N Thru-Hole PC Pins

Newark:
# OMRON ELECTRONIC COMPONENTS  D2F-01  Microswitch, D2F Series, SPDT, Pin Plunger, Solder, 100 mA, 125 V

MASTER:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 0.1A 30VDC 1.47N Thru-Hole PC Pins

Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 0.1A 30VDC 1.47N Thru-Hole PC Pins
