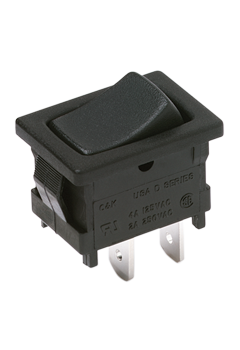

Switch Rocker ON None OFF DPST Quick Connect Curved Rocker 4A 250VAC
Safely turn on and off designs with this rocker switch from C&K Components. It has a DPST configuration. This device has a maximum current rating of 4 A @ 125VAC@CSA/UL/VDE. This rocker switch panel has an operating temperature range of -30 °C to 65 °C. The D202J12S215PQF rocker switch panel has a quick connect termination style. The maximum AC voltage rating is 250CSA/UL/VDE VAC. This product is 20.83 mm long, 25.89 mm tall and 23.85 mm deep.
额定电压AC 125 V
额定电流 4A AC
排数 2
额定电流Max 4 A
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压AC Max 250 V
安装方式 Quick Connect, Panel, Snap-In
长度 20.83 mm
高度 25.89 mm
外壳颜色 Black
颜色 Black
触点材质 Copper
工作温度 -30℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
