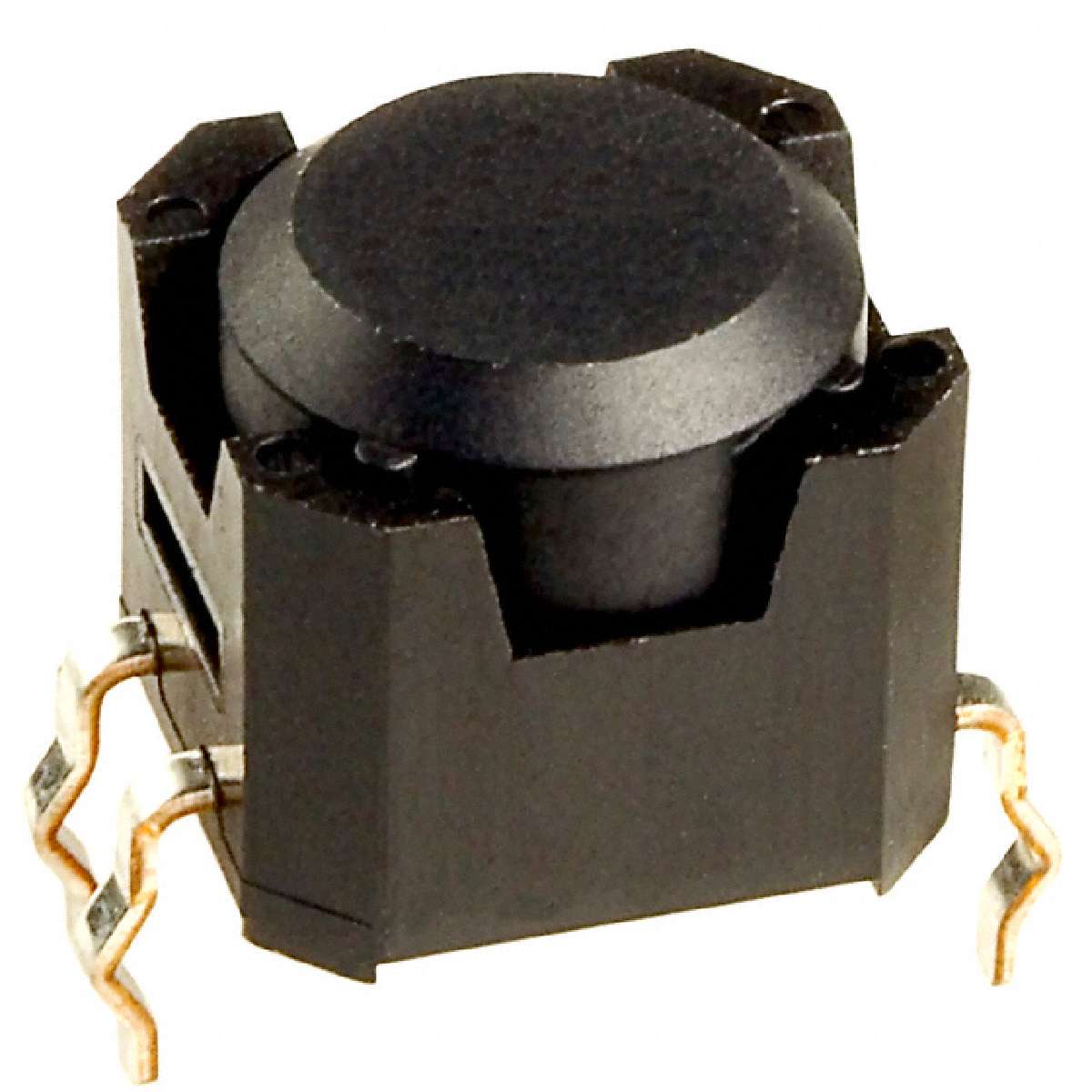

DS 系列 完全密封 节省空间 非接触式 倾斜开关
The is a PCB mount contactless Tilt Switch Sensor with ammonia-resistant terminals. The photo interrupter, rather than contacts, ensures high reliability. It has sealed construction for protection from environmental elements, including hydrogen sulfide, sulfur dioxide and nitrogen hydroxide. It has totally sealed body allows process compatibility for time saving automatic soldering and cleaning. Internal steel ball movement allows functionality 360° circumference rotation. The DS series switch is well suited to meet product safety concerns due to normally closed ON status. The crimped terminals ensure secure mounting and prevent dislodging during wave soldering.
触点电镀 Tin
额定电流 20 mA
绝缘电阻 50 MΩ
输出电流 20 mA
易燃性等级 UL 94 V-0
针脚数 2
正向电压 1.30 V
工作温度Max 80 ℃
工作温度Min -25 ℃
额定电压 30 V
电源电压 5 V
安装方式 Through Hole
封装 PCB Mount
长度 10 mm
宽度 9.5 mm
高度 8.8 mm
封装 PCB Mount
触点材质 Phosphor Bronze
工作温度 -25℃ ~ 80℃
产品生命周期 Active
包装方式 Tray
制造应用 Industrial, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
