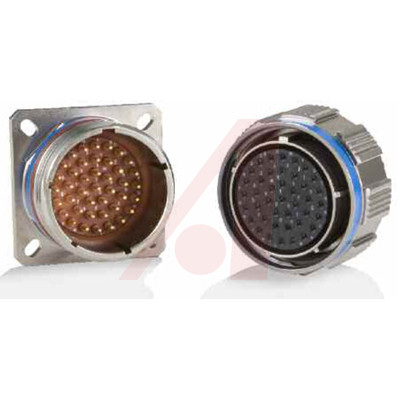

D38999/20FE26SA

D38999/20FE26SA图片1
D38999/20FE26SA图片2
D38999/20FE26SA图片3
D38999/20FE26SA图片4
D38999/20FE26SA图片5
D38999/20FE26SA图片6
D38999/20FE26SA概述

环形MIL规格连接器 DTS 26C 26#20 SK

These BNX series MIL-C-38999 Bandstrap adaptors are used with a corrosion resistant steel band and are designed to terminate a braided cable shield to a connector. The resulting 360 degree termination creates an electrical connection and provides screen continuity between braid and adaptor. The terminated cable can then be sealed and protected using a heat-shrinkable molded boot. The bodies of these BNX MIL-C-38999 band strap adapters have a straight alignment and are made from aluminum alloy.


贸泽:
环形MIL规格连接器 DTS 26C 26#20 SK


Allied Electronics:
Connector, DTS 26C 26#20 SKT RECP


安富利:
Conn MIL-C-38999 Circular SKT 26 POS Crimp ST Flange Mount 26 Terminal 1 Port


Verical:
Conn Circular SKT 26 POS Crimp ST Flange Mount 26 Terminal 1 Port


Powell:
MIL-DTL-38999 Series III Circular Connector


D38999/20FE26SA中文资料参数规格
技术参数

触点数 26

极性 Female

触点电镀 Gold

额定电流Max 7.5A/触头

封装参数

安装方式 Panel

外形尺寸

高度 33.29 mm

物理参数

触点材质 Copper Alloy

其他

产品生命周期 Unknown

符合标准

RoHS标准 RoHS Compliant

军工级 Yes

数据手册

在线购买D38999/20FE26SA
型号: D38999/20FE26SA
描述:环形MIL规格连接器 DTS 26C 26#20 SK
