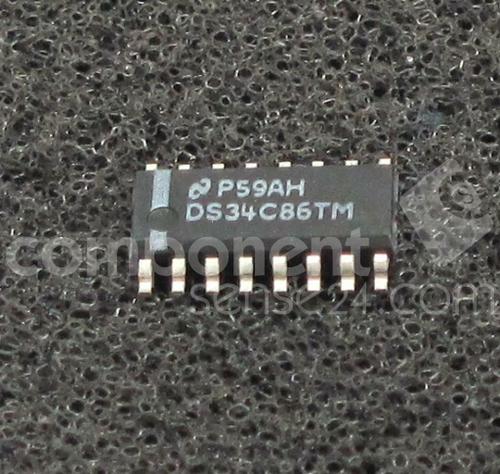

CMOS 差动线路接收器
The is a quad CMOS differential Line Receiver designed to meet the RS-422, RS-423 and Federal standards 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS. The DS34C86T has an input sensitivity of 200mV over the common mode input voltage range of ±7V. Hysteresis is provided to improve noise margin and discourage output instability for slowly changing input waveforms. The DS34C86T features internal pull-up and pull-down resistors which prevent output oscillation on unused channels. Separate enable pins allow independent control of receiver pairs. The tri-state outputs have 6mA source and sink capability. The DS34C86T is pin compatible with the DS3486.
电源电压DC 5.00 V, 5.00 V max
额定电流 25.0 A
供电电流 23 mA
通道数 4
针脚数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 传感与仪器, 工业
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DS34C86TM TI 德州仪器 | 当前型号 | 当前型号 |
DS34C86TM/NOPB 德州仪器 | 完全替代 | DS34C86TM和DS34C86TM/NOPB的区别 |
DS34C86TMX 德州仪器 | 类似代替 | DS34C86TM和DS34C86TMX的区别 |
