驱动器, LVDS, LVDS缓冲器, 135 ps, 70 mA, -40 °C, 85 °C, 3 V
The DS90LV001 LVDS-LVDS Buffer takes an LVDS input signal and provides an LVDS output signal. In many large systems, signals are distributed across backplanes, and one of the limiting factors for system speed is the "stub length" or the distance between the transmission line and the unterminated receivers on individual cards. Although it is generally recognized that this distance should be as short as possible to maximize system performance, real-world packaging concerns often make it difficult to make the stubs as short as the designer would like.
The DS90LV001, available in the WSON package, will allow the receiver to be placed very close to the main transmission line, thus improving system performance.
A wide input dynamic range will allow the DS90LV001 to receive differential signals from LVPECL as well as LVDS sources. This will allow the device to also fill the role of an LVPECL-LVDS translator.
An output enable pin is provided, which allows the user to place the LVDS output in TRI-STATE.
The DS90LV001 is offered in two package options, an 8 pin WSON and SOIC.
供电电流 47 mA
通道数 1
针脚数 8
耗散功率 726 W
数据速率 800 Mbps
功耗 155 W
输入电流Min 20 μA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 726 mW
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 8

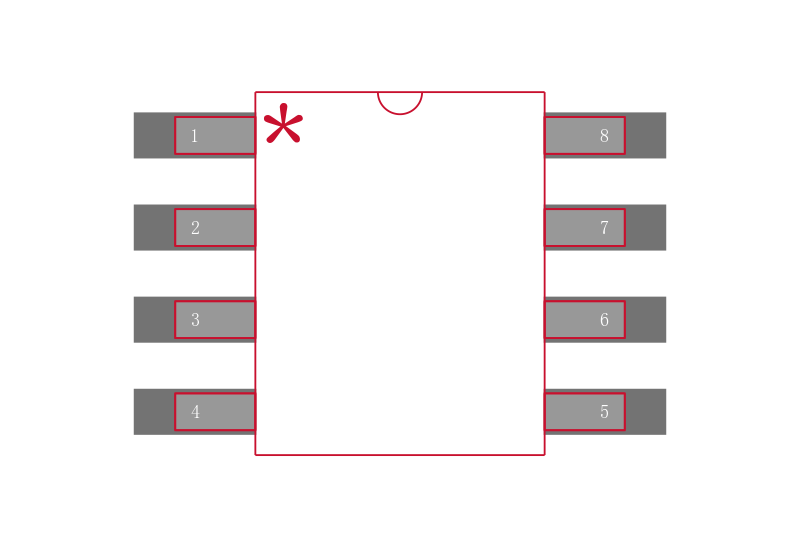

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 LVDS
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DS90LV001TMX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
DS90LV001TM/NOPB 德州仪器 | 完全替代 | DS90LV001TMX/NOPB和DS90LV001TM/NOPB的区别 |
DS90LV001TMX 德州仪器 | 完全替代 | DS90LV001TMX/NOPB和DS90LV001TMX的区别 |
DS90LV001TM 德州仪器 | 类似代替 | DS90LV001TMX/NOPB和DS90LV001TM的区别 |
