820pF 3.15kV R Φ12.0mm

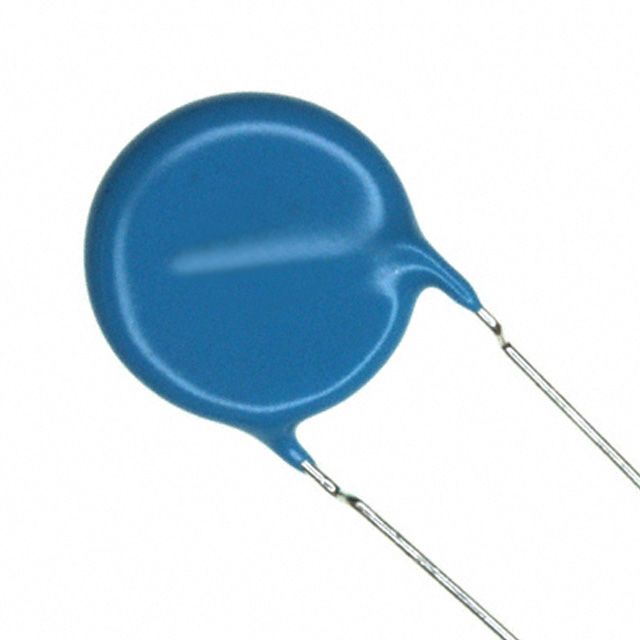

This ceramic disc high frequency capacitor uses ceramic materials as a dielectric and coating silver on both sides. It can withstand a voltage of 3150 VDC. This high frequency capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 820pF. This part has a lead diameter of 0.6 mm and a pitch of 7.5 mm. This product is 6Max mm deep. The DEHR33F821KA3B high frequency capacitor has a radial termination style. It has a tolerance of 10%.
额定电压DC 3.15 kV
电容 820 pF
容差 ±10 %
电介质特性 R
工作温度Max 125 ℃
工作温度Min -25 ℃
额定电压 3150 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
引脚间距 7.5 mm
长度 12 mm
宽度 12 mm
高度 6 mm
直径 12.0 mm
脚长度 25.0 mm
封装 Radial, Disc
引脚间距 7.5 mm
厚度 6 mm
材质 R
工作温度 -25℃ ~ 125℃
产品生命周期 Last Time Buy
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DEHR33F821KA3B muRata 村田 | 当前型号 | 当前型号 |
DEHR33F821KB3B 村田 | 完全替代 | DEHR33F821KA3B和DEHR33F821KB3B的区别 |
CK45-R3FD821K-NR 东电化 | 功能相似 | DEHR33F821KA3B和CK45-R3FD821K-NR的区别 |
DEHR33F821KN3A 村田 | 功能相似 | DEHR33F821KA3B和DEHR33F821KN3A的区别 |
