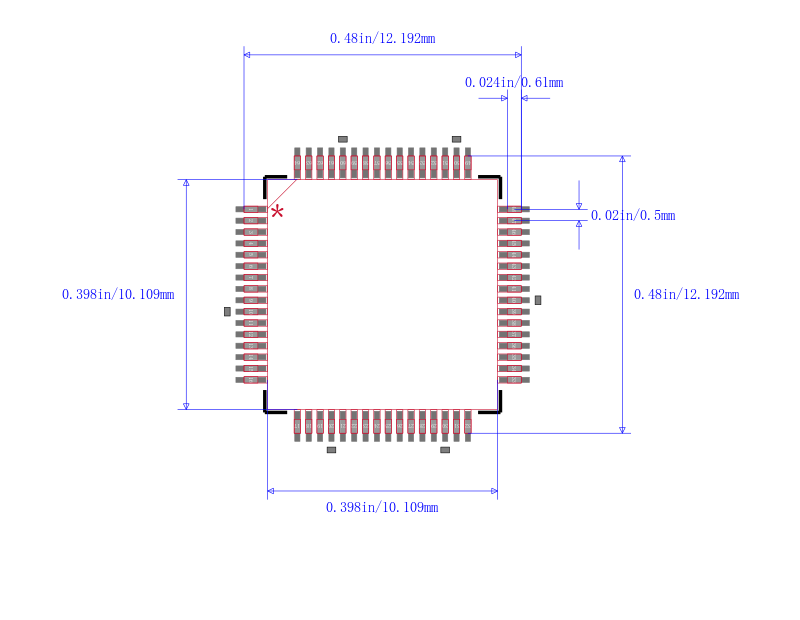

TEXAS INSTRUMENTS DS90UR124QVS 总线, CAN, 3 V, 3.6 V, TQFP
The is a 24-bit DC-balanced FPD-Link II Serializer and Deserializer translates a 24-bit parallel bus into a fully transparent data/control FPD-Link II LVDS serial stream with embedded clock information. This chipset is ideally suited for driving graphical data to displays requiring 18-bit colour depth: RGB666 + HS, VS, DE + three additional general-purpose data channels. This single serial stream simplifies transferring a 24-bit bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. The device saves system cost by narrowing data paths that in turn reduce PCB layers, cable width and connector size and pins. The DS90URxxx-Q1 incorporates FPD-Link II LVDS signalling on the high-speed I/O. FPD-Link II LVDS provides a low-power and low-noise environment for reliably transferring data over a serial transmission path. By optimizing the serializer output edge rate for the operating frequency range, EMI is further reduced.
- .
- Supports displays with 18-bit colour depth
- .
- 24:1 Interface compression
- .
- Embedded clock with DC balancing supports
- .
- AC-coupled data transmission
- .
- Capable to drive up to 10m shielded twisted-pair cable
- .
- No reference clock required deserializer
- .
- Hot plug support
- .
- @Speed BIST built-in self-test to validate LVDS transmission path
- .
- Individual power-down controls for both transmitter and receiver
- .
- Backward-compatible mode with DS90C241/DS90C124
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
