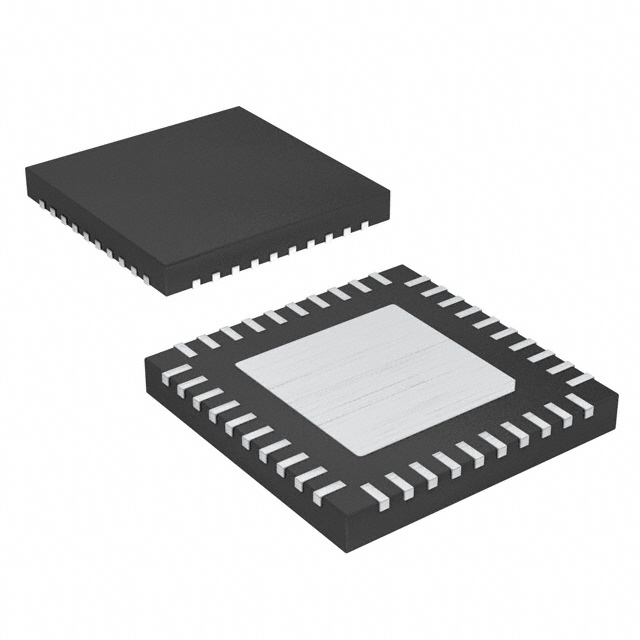

DS92LX2121SQE/NOPB图片1

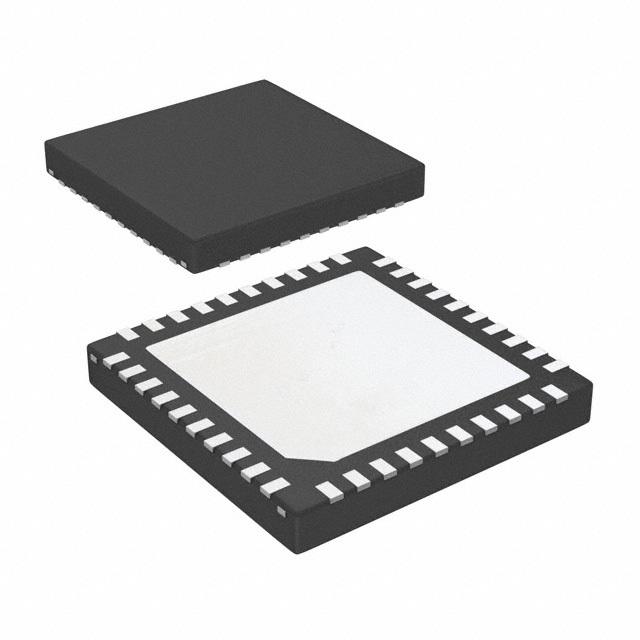

DS92LX2121SQE/NOPB图片2
DS92LX2121SQE/NOPB图片3
DS92LX2121SQE/NOPB图片4
DS92LX2121SQE/NOPB图片5
DS92LX2121SQE/NOPB图片6
DS92LX2121SQE/NOPB图片7
DS92LX2121SQE/NOPB图片8
DS92LX2121SQE/NOPB图片9
DS92LX2121SQE/NOPB图片10
DS92LX2121SQE/NOPB图片11
DS92LX2121SQE/NOPB图片12
DS92LX2121SQE/NOPB图片13
DS92LX2121SQE/NOPB图片14
DS92LX2121SQE/NOPB概述

10 - 50MHz 直流平衡信道链路 III 双向控制串行器 40-WQFN -40 to 85

The DS92LX2121/DS92LX2122 chipset offers a Channel Link III interface with a high-speed forward channel and a full-duplex control channel for data transmission over a single differential pair. The DS92LX2121/DS92LX2122 incorporates differential signaling on both the high-speed and bi-directional back channel control data paths. The Serializer/ Deserializer pair is targeted for direct connections between graphics host controller and displays modules. This chipset is ideally suited for driving video data to displays requiring 18-bit color depth RGB666 + HS, VS, and DE along with a bi-directional back channel control bus. The primary transport converts 21 bit data over a single high-speed serial stream, along with a separate low latency bi-directional back channel transport that accepts control information from an I2C port. Using ’s embedded clock technology allows transparent full-duplex communication over a single differential pair, carrying asymmetrical bi-directional back channel control information in both directions. This single serial stream simplifies transferring a wide data bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. This significantly saves system cost by narrowing data paths that in turn reduce cable width, connector size and pins.

In addition, the Deserializer provides input equalization to compensate for loss from the media over longer distances. Internal DC balanced encoding/decoding is used to support AC-Coupled interconnects.

A sleep function provides a power-savings mode when the high speed forward channel and embedded bi-directional control channel are not needed.

The Serializer is offered in a 40-pin lead in WQFN and Deserializer is offered in a 48-pin WQFN packages.

DS92LX2121SQE/NOPB中文资料参数规格
技术参数

输出接口数 1

数据速率 100 kbps

输入电流Min 20 μA

输入数 21

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.71V ~ 1.89V

电源电压Max 1.89 V

电源电压Min 1.71 V

封装参数

安装方式 Surface Mount

引脚数 40

封装 WFQFN-40

外形尺寸

封装 WFQFN-40

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 5A991.b.1

数据手册

DS92LX2121SQE/NOPB引脚图与封装图
DS92LX2121SQE/NOPB引脚图
DS92LX2121SQE/NOPB封装焊盘图
