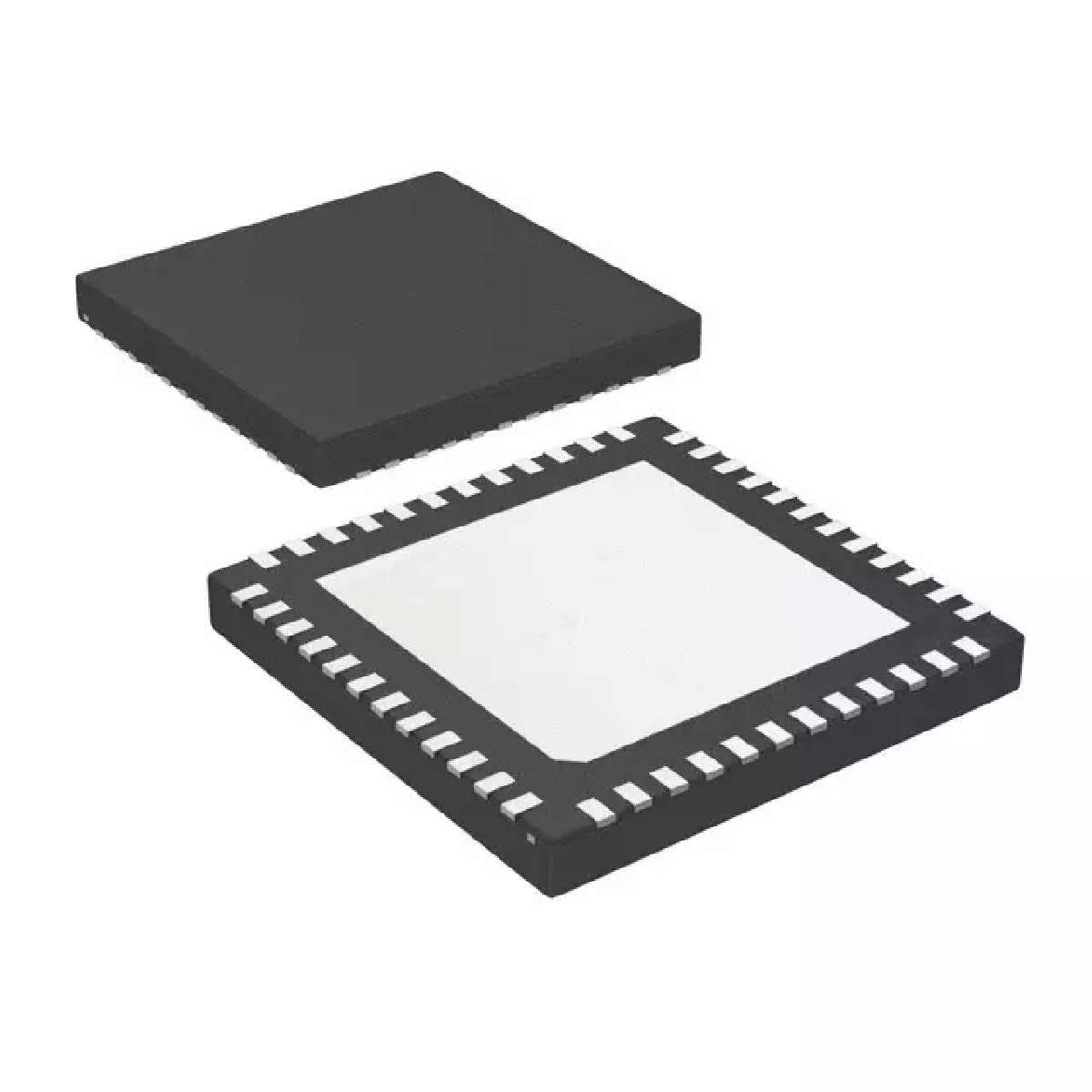

DS92LX2122SQE/NOPB图片1
DS92LX2122SQE/NOPB图片2
DS92LX2122SQE/NOPB图片3
DS92LX2122SQE/NOPB图片4
DS92LX2122SQE/NOPB图片5
DS92LX2122SQE/NOPB图片6
DS92LX2122SQE/NOPB图片7
DS92LX2122SQE/NOPB图片8
DS92LX2122SQE/NOPB图片9
DS92LX2122SQE/NOPB图片10
DS92LX2122SQE/NOPB图片11
DS92LX2122SQE/NOPB图片12
DS92LX2122SQE/NOPB概述

DS92LX2122SQE/NOPB 编带

The is a DC-balanced bi-directional control Deserializer Chipset offers a Channel Link III interface with a high-speed forward channel and a full-duplex control channel for data transmission over a single differential pair. It incorporates differential signalling on both the high-speed and bi-directional back channel control data paths. It is targeted for direct connections between graphics host controller and displays modules. This chipset is ideally suited for driving video data to displays requiring 18-bit colour depth RGB666 + HS, VS and DE along with a bi-directional back channel control bus. The primary transport converts 21 bit data over a single high-speed serial stream, along with a separate low latency bi-directional back channel transport that accepts control information from an I²C port. This single serial stream simplifies transferring a wide data bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths.

.
Supports 18-bit colour depth RGB666 + HS, VS, DE
.
Embedded clock with DC balanced coding to support AC-coupled interconnects
.
Capable to drive up to 10m shielded twisted-pair cable
.
Bi-directional control interface channel with I²C support
.
I²C interface for device configuration
.
Single-pin ID addressing
.
Up to 4 GPI on DES and GPO on SER
.
AT-SPEED BIST diagnosis feature to validate link integrity
.
Individual power-down controls for both Ser and Des
.
User-selectable clock edge for parallel data on both Ser and Des
.
Integrated termination resistors
.
No reference clock required
.
Programmable receive equalization
.
Lock output reporting pin to ensure
.
Up to 1050Mbps data throughput
.
10 to 50MHz Input clock support
.
Green product and no Sb/Br
DS92LX2122SQE/NOPB中文资料参数规格
技术参数

电源电压DC 3.00V min

输出接口数 21

数据速率 1.05 Gbps

输入电流Min 20 μA

输入数 1

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.71V ~ 1.89V

电源电压Max 3.6 V

电源电压Min 3 V

封装参数

安装方式 Surface Mount

引脚数 48

封装 WFQFN-48

外形尺寸

封装 WFQFN-48

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 5A991.b.1

数据手册

DS92LX2122SQE/NOPB引脚图与封装图
DS92LX2122SQE/NOPB引脚图
DS92LX2122SQE/NOPB封装焊盘图
