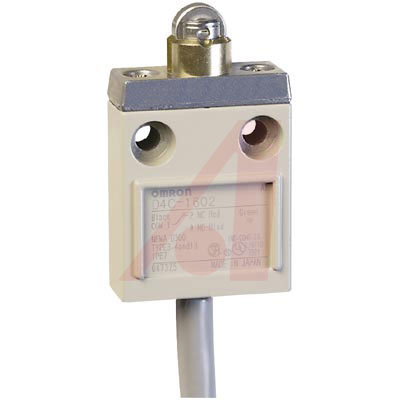

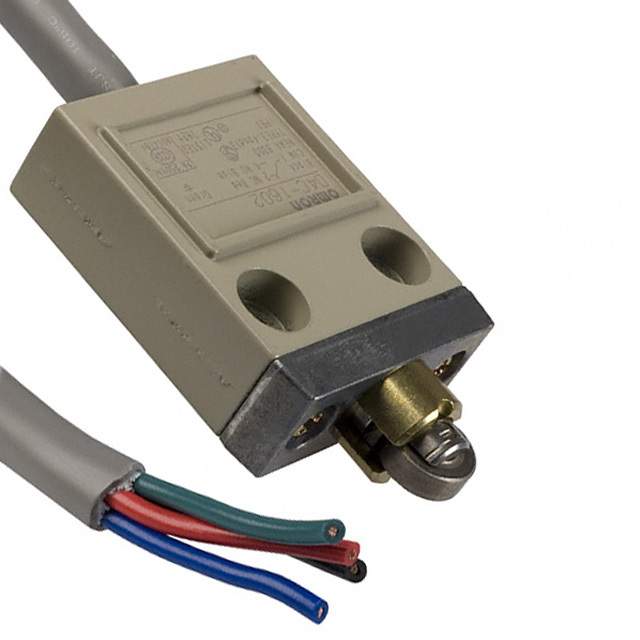

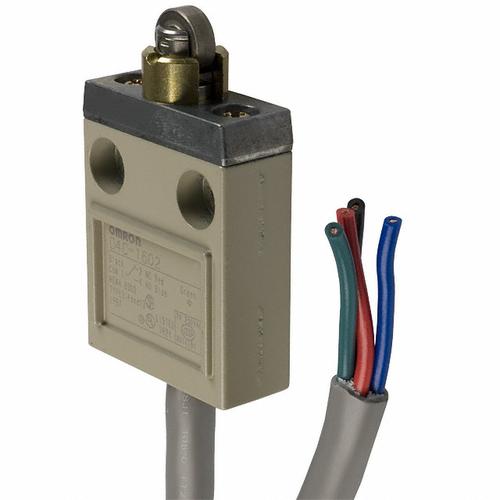

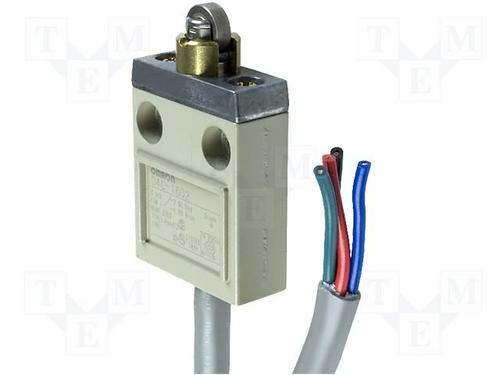

Slim Enclosed Limit Switches, 5 A Current Rating, 250 VAC Voltage Rating, -10 to +70 °C
This prewired, sealed switch offers a rugged die-cast housing and triple sealed construction that has been designed for easy ganged-mounting.- .

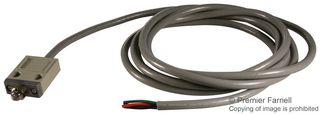

- * Contact Ratings:** 5 A, 125/250 VAC. This model meets UL 3, 4 and 13. Prewired with 3 M 9.8" cable. UL recognized and CSA certified providing a minimum of ten-million operation mechanical service life.
UL types 3, 4, and 13. NEMA types 1, 3, 3R, 4, 5, 6, 12 and 13. IP67 enclosure rating.
额定电压DC 30 V
接触器类型 Roller Plunger
额定电压AC 250 V
额定电流 5A AC, 4A DC
触点类型 SPDT
额定电流Max 5A @250VAC, 14VDC
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压 250 VAC
额定电压AC Max 250 V
安装方式 Panel
封装 -
长度 40 mm
宽度 17.4 mm
高度 54.2 mm
封装 -
工作温度 -10℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
D4C-1602 Omron 欧姆龙 | 当前型号 | 当前型号 |
SSCEB31C 霍尼韦尔 | 功能相似 | D4C-1602和SSCEB31C的区别 |
924CE31-S6 霍尼韦尔 | 功能相似 | D4C-1602和924CE31-S6的区别 |
9007MS02S0100 施耐德 | 功能相似 | D4C-1602和9007MS02S0100的区别 |
