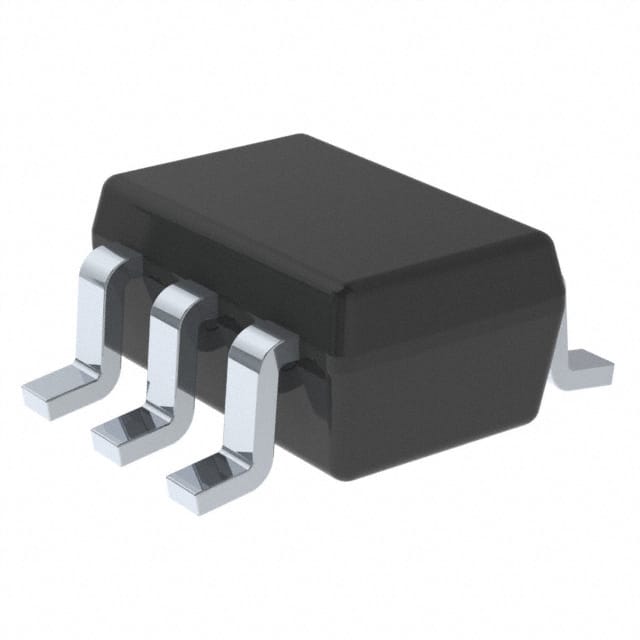

TEXAS INSTRUMENTS  DAC7311IDCKR  芯片, 数模转换器, 12位, 225KSPS, SC-70-6, 整卷

The DAC5311 8-bit, DAC6311 10-bit, and DAC7311 12-bit devices are low-power, single-channel, voltage output digital-to-analog converters DACs. The low power consumption of these devices in normal operation 0.55 mW at 5 V, reducing to 2.5 µW in power-down mode makes it ideally suited for portable, battery-operated applications.

These devices are monotonic by design, provide excellent linearity, and minimize undesired code-to-code transient voltages while offering an easy upgrade path within a pin-compatible family. All devices use a versatile, three-wire serial interface that operates at clock rates of up to 50 MHz and is compatible with standard SPI™, QSPI™, Microwire, and digital signal processor DSP interfaces.

All devices use an external power supply as a reference voltage to set the output range. The devices incorporate a power-on reset POR circuit that ensures the DAC output powers up at 0 V and remains there until a valid write to the device occurs. The DAC5311, DAC6311, and DAC7311 contain a power-down feature, accessed over the serial interface, that reduces current consumption of the device to 0.1 µA at 2.0 V in power-down mode.

These devices are pin-compatible with the DAC8311 and DAC8411, offering an easy upgrade path from 8-, 10-, and 12-bit resolution to 14- and 16-bit. All devices are available in a small, 6-pin, SC70 SOT package. This package offers a flexible, pin- and function-compatible, drop-in solution within the family over an extended temperature range of –40°C to +125°C.
