TEXAS INSTRUMENTS DAC0808LCN 数模转换器, 8 bit, 并行, 4.5V 至 5.5V, -4.5V 至 -16.5V, DIP, 16 引脚
The is a 8-bit monolithic Digital-to-analogue Converter features a full scale output current settling time of 150ns while dissipating only 33mW with ±5V supplies. No reference current IREF trimming is required for most applications since the full scale output current is typically ±1 LSB of 255 IREF/256. Relative accuracies of better than ±0.19% assure 8-bit monotonicity and linearity while zero level output current of less than 4µA provides 8-bit zero accuracy for IREF >=2mA. The power supply current of the DAC0808 is independent of bit codes and exhibits essentially constant device characteristics over the entire supply voltage range. The DAC will interface directly with popular TTL, DTL or CMOS logic levels.
ESD sensitive device, take proper precaution while handling the device.
电源电压DC 5.00 V
输出接口数 1
供电电流 2.30 mA
通道数 1
针脚数 16
位数 8
耗散功率 0.305 W
采样率 6.60 mHz
功耗 33.0 mW
工作温度Max 75 ℃
工作温度Min 0 ℃
耗散功率Max 305 mW
安装方式 Through Hole
引脚数 16

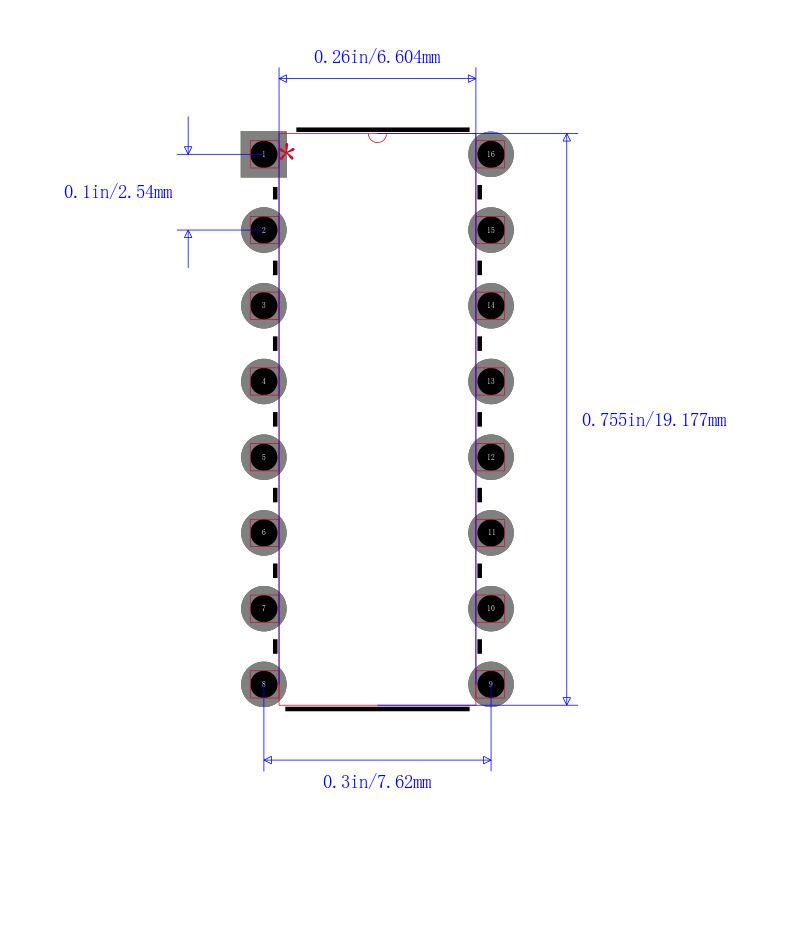

封装 DIP-16
高度 3.3 mm
封装 DIP-16
工作温度 0℃ ~ 75℃
产品生命周期 Active
包装方式 Each
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DAC0808LCN TI 德州仪器 | 当前型号 | 当前型号 |
DAC0808LCM 德州仪器 | 完全替代 | DAC0808LCN和DAC0808LCM的区别 |
DAC0808LCMX 德州仪器 | 完全替代 | DAC0808LCN和DAC0808LCMX的区别 |
DAC0808LCN/NOPB 德州仪器 | 类似代替 | DAC0808LCN和DAC0808LCN/NOPB的区别 |
