DAC121S101CIMMX/NOPB

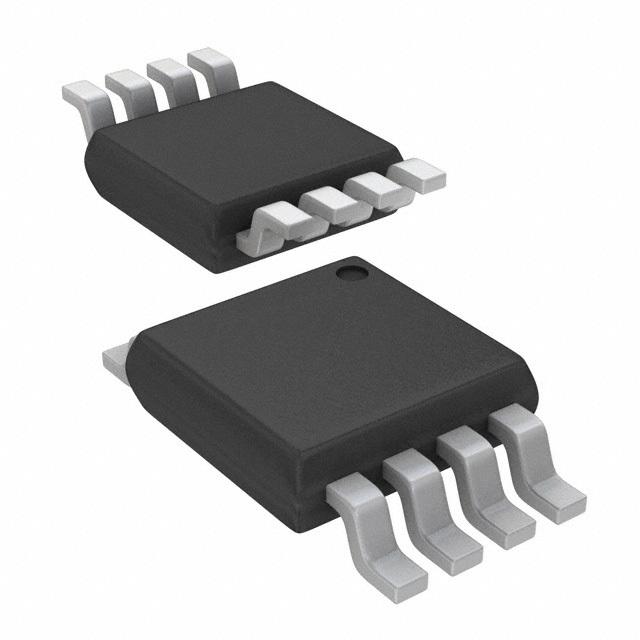

DAC 1CH Resistor-String 12Bit 8Pin VSSOP T/R

Description

The DAC121S101 device is a full-featured, general-purpose, 12-bit voltage-output digital-to-analog

converter DAC that can operate from a single 2.7-V to 5.5-V supply and consumes just 177 µA of current at 3.6 V. The on-chip output amplifier allows rail-to rail output swing and the three wire serial interface operates at clock rates up to 30 MHz over the specified supply voltage range and is compatible with standard SPI™, QSPI, MICROWIRE and DSP interfaces. Competitive devices are limited to 20-MHz

clock rates at supply voltages in the 2.7 V to 3.6 V range.

Features

• DAC121S101-Q1 is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade Flow.

• Ensured Monotonicity

• Low Power Operation

• Rail-to-Rail Voltage Output

• Power-on Reset to Zero Volts Output

• Wide Temperature Range of −40°C to +125°C

• Wide Power Supply Range of 2.7 V to 5.5 V

• Small Packages

• Power Down Feature

• Key Specifications

– 12-Bit Resolution

– DNL -0.15, +0.25 LSB Typical

– 8-µs Output Settling Time Typical

– 4-mV Zero Code Error Typical

– Full-Scale Error at −0.06 %FS Typical

– 0.64-mW 3.6-V / 1.43-mW 5.5-V Normal Mode Power Consumption Typical

– 0.14-µW 3.6-V / 0.39-µW 5.5-V Power Down Mode Typical

Applications

• Battery-Powered Instruments

• Digital Gain and Offset Adjustment

• Programmable Voltage and Current Sources

• Programmable Attenuators

• Automotive
