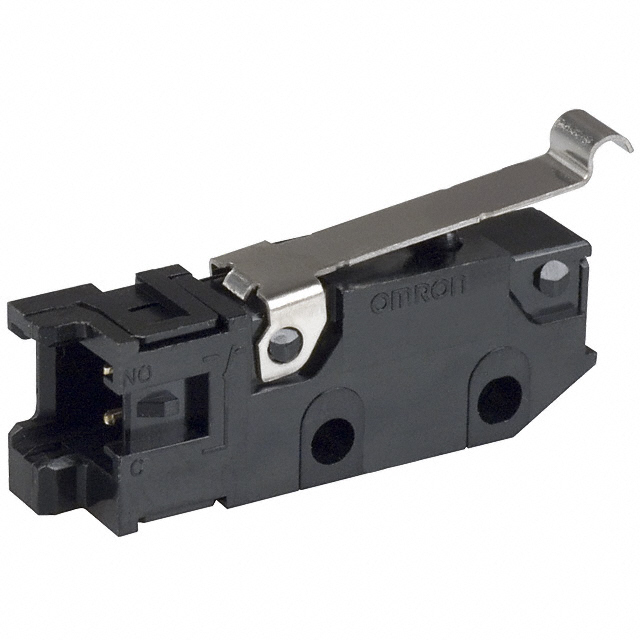

基本/快动开关 SIM RLLR LVR SPST-NO
** Compact Basic Switch Offers Simplified Installation **
* Short and Long Fulcrum Models
* Externally Mounted Actuator
* Quick Connect Terminals
* Horizontal Layout of Terminals Saves Mounting Space
* RoHS Compliant
得捷:
SWITCH SNAP SPST-NO 100MA 30V
立创商城:
开关
贸泽:
基本/快动开关 SIM RLLR LVR SPST-NO
艾睿:
The D3M-01L3-3 snap-action switch from Omron is ideal when it comes to opening or closing your circuit. This device has a maximum current rating of 0.1 A @ 30VDC. It has a SPST configuration. This snap action switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The D3M-01L3-3 snap action switch has a quick connect termination style. The maximum DC voltage rating is 30 VDC. This product is 7.2 mm deep.
Allied Electronics:
SWITCH; SUBMINIATURE; SNAP ACTION; SIMULATED ROLLER LEVER; SPST-NO
安富利:
Switch Snap Action N.O. SPST Simulated Roller Lever Quick Connect 0.1A 30VDC 1N Screw Mount
Chip1Stop:
Switch Snap Action N.O. SPST Simulated Roller Lever Quick Connect 0.1A 30VDC 1N Screw Mount
Verical:
Switch Snap Action N.O. SPST Simulated Roller Lever 0.1A 30VDC 1N Screw Mount Quick Connect
Newark:
# OMRON ELECTRONIC COMPONENTS D3M-01L3-3 Microswitch, Quick Connect
MASTER:
Switch Snap Action N.O. SPST Simulated Roller Lever Quick Connect 0.1A 30VDC 1N Screw Mount
Online Components:
Switch Snap Action N.O. SPST Simulated Roller Lever Quick Connect 0.1A 30VDC 1N Screw Mount
Electro Sonic:
Switch Snap Action N.O. SPST Simulated Roller Lever Quick Connect 0.1A 30VDC 1N Screw Mount
额定电压DC 30 V
接触器类型 Roller Lever
额定电流 100 mA
触点类型 SPST-NO
额定电流Max 0.1A @30VDC
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 30 VDC
额定电压DC Max 30 V
安装方式 Screw, Quick Connect
封装 -
长度 29.2 mm
宽度 7.2 mm
高度 15.9 mm
封装 -
触点材质 Gold Alloy
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509040
