Omron D2MC 低扭矩基本开关高度可靠的旋转作用开关,用于低扭矩操作 额定值为 0.5-A 的型号采用金合金交叉触点,在微负载范围内提供出色的触点可靠性。 通过使用可移动卷簧确保长使用寿命(最少 1000 万次机械操作)。 ### V3型

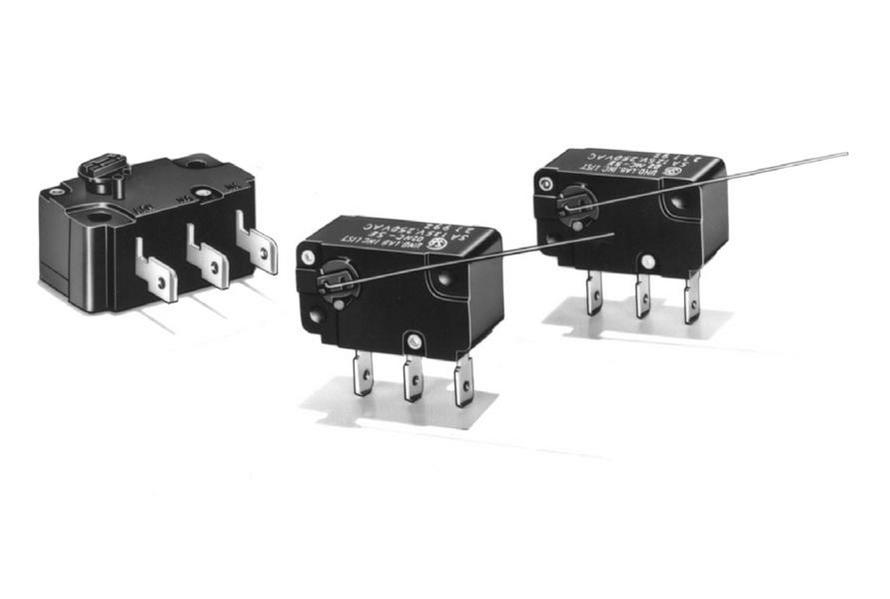

D2MC 低扭矩基本
高度可靠的旋转作用开关,用于低扭矩操作
额定值为 0.5-A 的型号采用金合金交叉触点,在微负载范围内提供出色的触点可靠性。
通过使用可移动卷簧确保长使用寿命(最少 1000 万次机械操作)。
立创商城:
开关
欧时:
Omron D2MC-5FL 单刀双掷 - 常开/常闭 旋转式 微动开关, 5 A @ 250 V 交流
贸泽:
基本/快动开关 CCW rotary 7.6gf xcm 5 A SPDT
艾睿:
The D2MC-5FL snap-action switch from Omron makes opening or closing your circuit a fast operation. It has a SPDT configuration. This device has a maximum current rating of 5 A @ 250VAC. This snap action switch has a minimum operating temperature of -25 °C and a maximum of 80 °C. The D2MC-5FL snap action switch has a quick connect termination style. The maximum AC voltage rating is 250 VAC. This product is 31 mm long, 27.8 mm tall and 18.2 mm deep.
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Auxiliary Quick Connect 5A 250VAC Screw Mount
Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Auxiliary Quick Connect 5A 250VAC Screw Mount
接触器类型 Side Rotary
额定电流 5.00 A
触点类型 SPDT
接触电阻 20.0 mΩ
触点额定电流 5A @250VAC
额定电流Max 5A @250VAC
工作温度Max 80 ℃
工作温度Min -25 ℃
安装方式 Chassis
封装 -
长度 31 mm
宽度 18.2 mm
高度 27.8 mm
封装 -
触点材质 Silver Alloy
工作温度 -25℃ ~ 80℃
产品生命周期 Not Recommended for New Design
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
