DAC7613EBG4

12位电压输出数位类比转换器 12-Bit, Voltage Output DIGITAL-TO-ANALOG CONVERTER

DESCRIPON

The DAC7613 is a 12-bit, voltage output digital-to-analog converter with guaranteed 12-bit monotonic performance over the specified temperature range. The DAC7613 accepts a 12-bit parallel input data, has

double-buffered DAC input logic and provides a readback mode of the internal input register. An asynchronous reset clears all registers to a mid-scale code of 800H or to a zero-scale of 000H. The DAC7613 can operate from a single +5V supply or from +5V and –5V supplies.

FEATURES

● LOW POWER: 1.8mW

● UNIPOLAR OR BIPOLAR OPERATION

● SETTLING TIME: 10µs to 0.012%

● 12-BIT LINEARITY AND MONOTONICITY: –40°C to +85°C

● DATA READBACK

● DOUBLE-BUFFERED DATA INPUTS

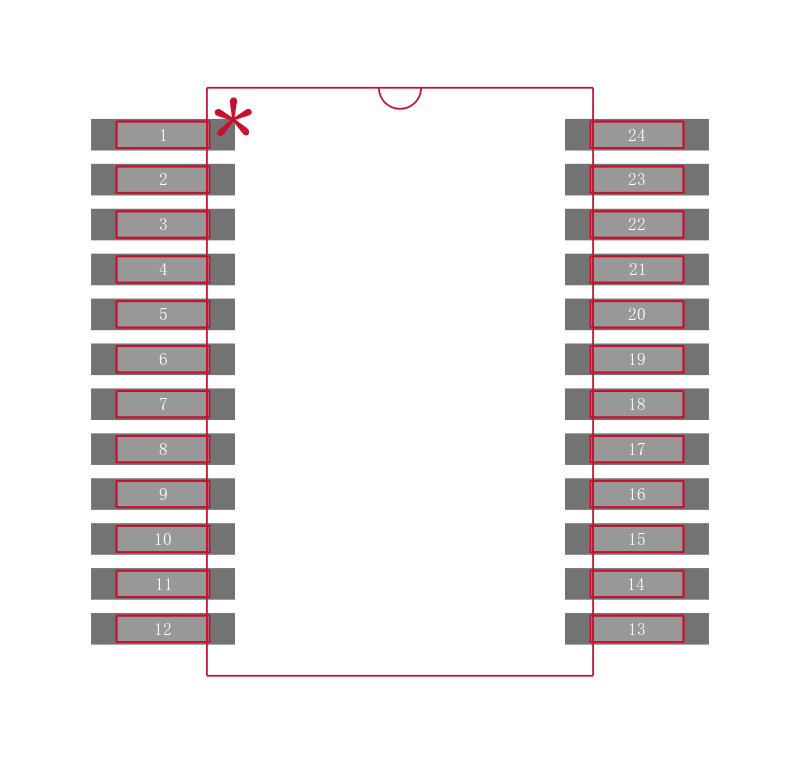

● 24-LEAD SSOP PACKAGE

APPLICATIONS

● PROCESS CONTROL

● CLOSED-LOOP SERVO-CONTROL

● MOTOR CONTROL

● DATA ACQUISITION SYSTEMS
