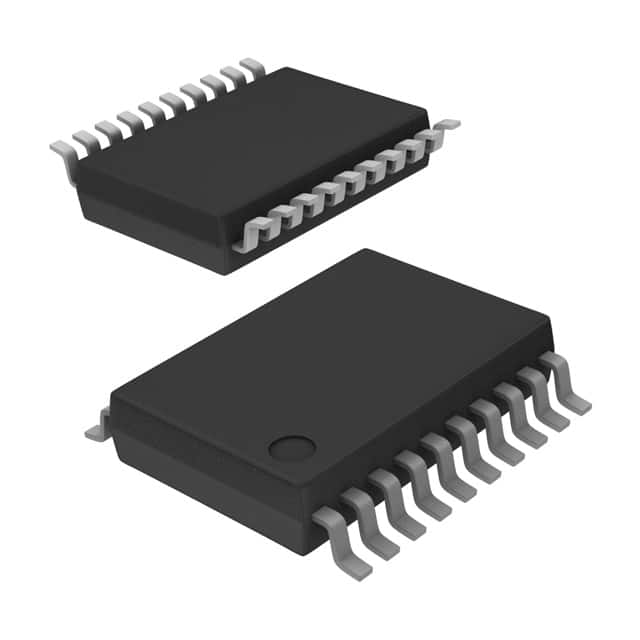

数模转换器- DAC Quad Ser In 12-Bit Voltage Output
12 Bit Digital to Analog Converter 4 20-SSOP
得捷:
IC DAC 12BIT V-OUT 20SSOP
立创商城:
DAC7614EB/1K
德州仪器TI:
Quad, Serial Input, 12-Bit, Voltage Output Digital-To-Analog Converter
贸泽:
数模转换器- DAC Quad Ser In 12-Bit Voltage Output
艾睿:
Computerized binary information can easily be translated into varying audio and video signals using the DAC7614EB/1K DAC converter, developed especially from Texas Instruments. It has a voltage output. This device&s;s digital interface is serial. This device is based on R-2R architecture. This DAC has a resolution of 12bit. Its typical dual supply voltage is ±5 V, with a minimum of ±4.75 V and maximum of ±5.25 V. This DAC has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device uses one or two power supplies.
安富利:
DAC 4-CH R-2R 12-bit 20-Pin SSOP T/R
Chip1Stop:
DAC 4-CH R-2R 12-bit 20-Pin SSOP T/R
Verical:
DAC 4-CH R-2R 12-bit 20-Pin SSOP T/R
Newark:
# TEXAS INSTRUMENTS DAC7614EB/1K Digital to Analog Converter, 12 bit, 89 kSPS, Serial, ± 4.75V to ± 5.25V, SSOP, 20 Pins
输出接口数 4
供电电流 -1.60 mA
通道数 4
位数 12
耗散功率 0.02 W
采样率 89.0 µHz
功耗 15 mW
过温保护 No
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 20 mW
数模转换数DAC 4
安装方式 Surface Mount
引脚数 20
封装 SSOP-20
高度 1.95 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DAC7614EB/1K TI 德州仪器 | 当前型号 | 当前型号 |
DAC7614EB/1KG4 德州仪器 | 完全替代 | DAC7614EB/1K和DAC7614EB/1KG4的区别 |
DAC7614EB 德州仪器 | 类似代替 | DAC7614EB/1K和DAC7614EB的区别 |
DAC7614EBG4 德州仪器 | 类似代替 | DAC7614EB/1K和DAC7614EBG4的区别 |
