DAC7731EG4

数模转换器- DAC 16-Bit Sng Ch W/Int +10V Ref & Ser I/F

DESCRIPON

The DAC7731 is a 16-bit Digital-to-Analog Converter DAC which provides 16 bits of monotonic performance over the specified operating temperature range and offers a +10V internal reference. Designed for automatic test equipment and industrial process control applications, the DAC7731 output swing can be configured in a ±10V, ±5V, or +10V range.

FEATURES

● LOW POWER: 150mW MAXIMUM

● +10V INTERNAL REFERENCE

● UNIPOLAR OR BIPOLAR OPERATION

● SETTLING TIME: 5µs to ±0.003% FSR

● 16-BIT MONOTONICITY, –40°C TO +85°C

● ±10V, ±5V, OR +10V CONFIGURABLE VOLTAGE OUTPUT

● RESET TO ZERO OR MID-SCALE

● DOUBLE-BUFFERED DATA INPUT

● DAISY-CHAIN FEATURE FOR MULTIPLE DAC7731s ON A SINGLE BUS

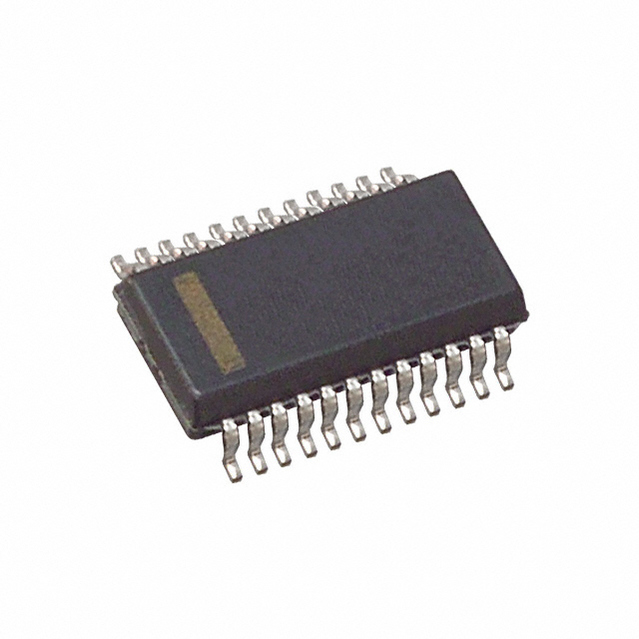

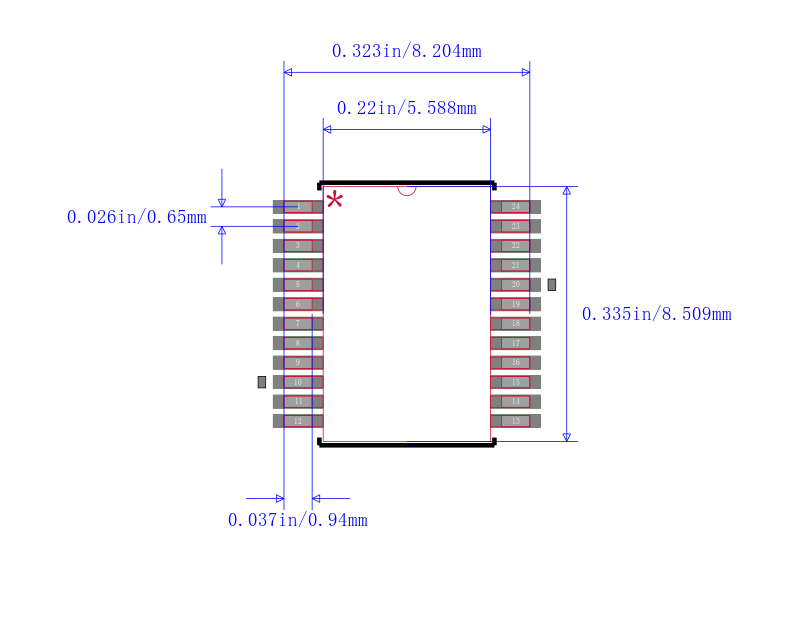

● SMALL SSOP-24 PACKAGE

APPLICATIONS

● PROCESS CONTROL

● ATE PIN ELECTRONICS

● CLOSED-LOOP SERVO CONTROL

● MOTOR CONTROL

● DATA ACQUISITION SYSTEMS
