16Bit, Single Channel, Parallel Interface with Internal eference 48-LQFP -40℃ to 85℃
The DAC7742 is a 16-bit Digital-to-Analog Converter DAC that provides 16 bits of monotonic performance over the specified operating temperature range and offers a +10V, low-drift internal reference. Designed for automatic test equipment and industrial process control applications, the DAC7742 output swing can be configured in a ±10V, ±5V, or +10V range. The flexibility of the output configuration allows the DAC7742 to provide both unipolar and bipolar operation by pin strapping. The DAC7742 includes a high-speed output amplifier with a maximum settling time of 5µs to ±0.003% FSR for a 20V full-scale change and only consumes 100mW typical of power.
The DAC7742 features a standard 16-bit parallel interface with double buffering to allow asynchronous updates of the analog output, and data read-back to support data integrity verification prior to an update. A user-programmable reset control allows the DAC output to reset to min-scale FFFFH or mid-scale 7FFFH overriding the DAC register values. The DAC7742 is available in an LQFP-48 package and three performance grades specified to operate from -40°C to +85°C.
输出接口数 1
供电电流 4.00 mA
通道数 1
位数 16
耗散功率 0.15 W
采样率 200 ksps
功耗 100 mW
过温保护 No
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 150 mW
数模转换数DAC 1
安装方式 Surface Mount
引脚数 48

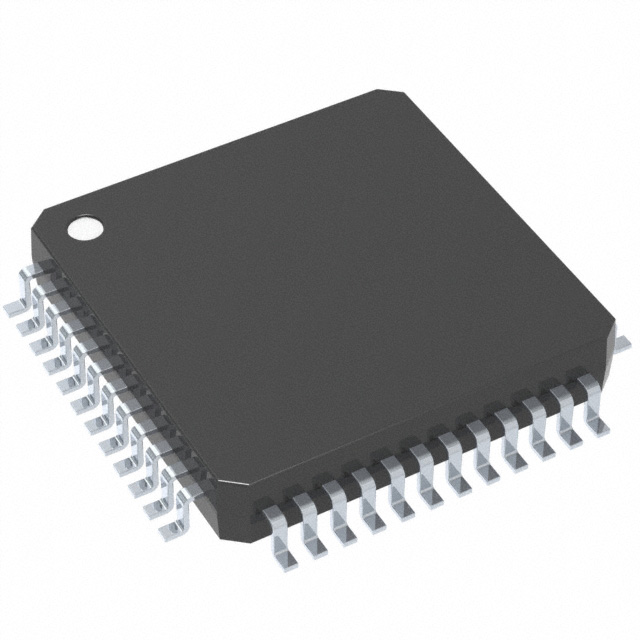

封装 LQFP-48
高度 1.45 mm
封装 LQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DAC7742Y/250 TI 德州仪器 | 当前型号 | 当前型号 |
DAC7742Y/2K 德州仪器 | 类似代替 | DAC7742Y/250和DAC7742Y/2K的区别 |
DAC7742Y/2KG4 德州仪器 | 类似代替 | DAC7742Y/250和DAC7742Y/2KG4的区别 |
