DAC813JUG4

微处理器兼容12位数字 - 模拟转换器 Microprocessor-Compatible 12-BIT DIGITAL-TO-ANALOG CONVERTER

DESCRIPON

The DAC813 is a complete monolithic 12-bit digital to-analog converter with a flexible digital interface. It includes a precision +10V reference, interface control logic, double-buffered latch and a 12-bit D/A converter with voltage output operational amplifier. Fast current switches and laser-trimmed thin-film resistors provide a highly accurate, fast D/A converter.

FEATURES

●±1/2LSB NONLINEARITY OVER TEMPERATURE

●GUARANTEED MONOTONIC OVER TEMPERATURE

●LOW POWER: 270mW typ

●DIGITAL INTERFACE DOUBLE BUFFERED: 12 AND 8 + 4 BITS

●SPECIFIED AT ±12V AND ±15V POWER SUPPLIES

●RESET FUNCTION TO BIPOLAR ZERO

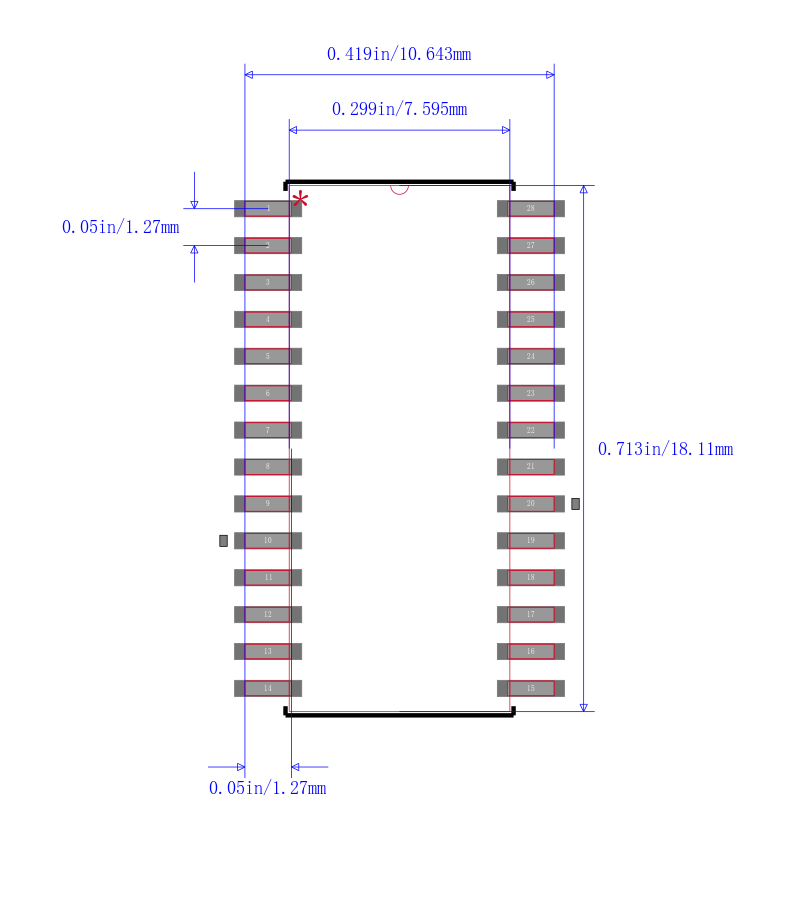

●0.3" WIDE DIP AND SO PACKAGES
