DAC712PL

16位数字 - 模拟转换器，具有16位总线接口 16-BIT DIGITAL-TO-ANALOG CONVERTER with 16-Bit Bus Interface

DESCRIPON

The DAC712 is a complete 16-bit resolution digital-to-analog D/A converter with 16 bits of

monotonicity over temperature.

The DAC712 has a precision +10V temperature-compensated voltage reference, ±10V

output amplifier, and 16-bit port bus interface.

The digital interface is fast, 60ns minimum write pulse width, double-buffered, and has a CLEAR function that resets the analog output to bipolar zero.

GAIN and OFFSET adjustment inputs are arranged so that they can be easily trimmed by external D/A converters as well as by potentiometers.

FEATURES

• HIGH-SPEED, 16-BIT PARALLEL DOUBLE-BUFFERED INTERFACE

• VOLTAGE OUTPUT: ±10V

• 13-, 14-, AND 15-BIT LINEARITY GRADES

• 16-BIT MONOTONIC OVER TEMPERATUREL GRADE

• POWER DISSIPATION: 600mW max

• GAIN AND OFFSET ADJUST: Convenient for Auto-Cal D/A Converters

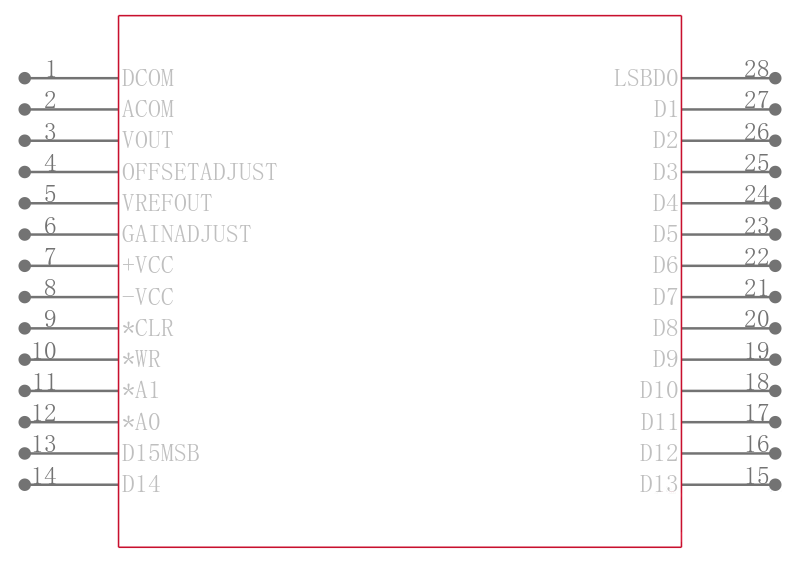

• 28-LEAD DIP AND SOIC PACKAGES
