DAC7734EB

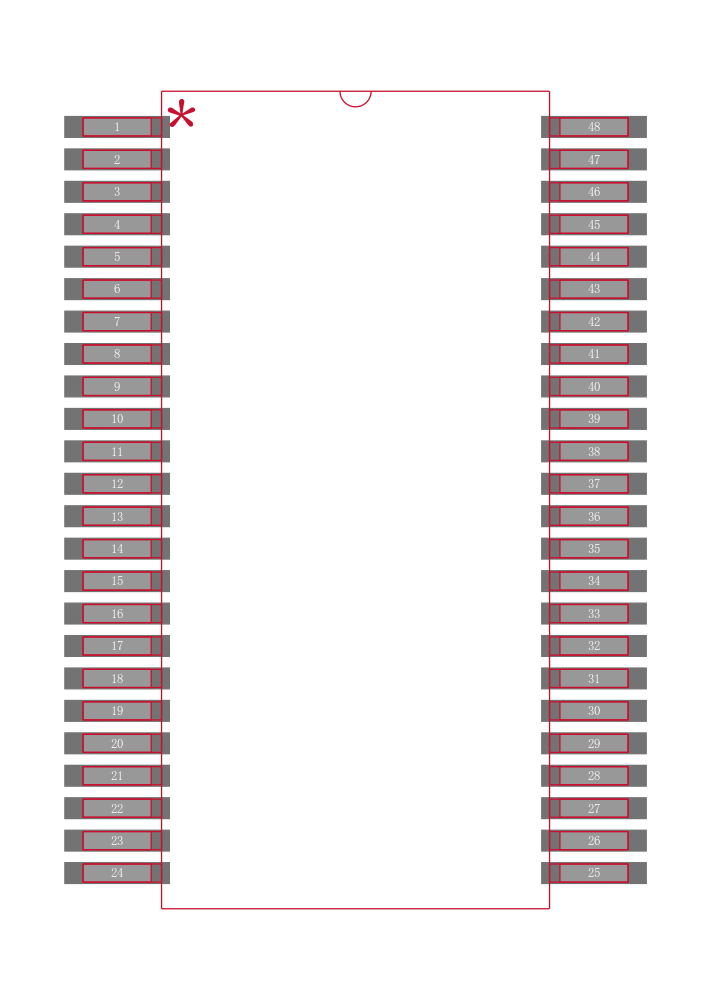

TEXAS INSTRUMENTS  DAC7734EB  数模转换器, 四路, 16 bit, 串行, ± 14.25V 至 ± 15.75V, SSOP, 48 引脚

The is a 16-bit quad voltage output Digital-to-analog Converter DAC with ensured monotonic performance over the specified temperature range. It accepts 24-bit serial input data, has double-buffered DAC input logic and provides a serial data output for daisy-chaining multiple DAC. Programmable asynchronous reset clears all registers to a mid-scale code of 8000h or to a zero-scale of 0000h. The DAC7734 can operate from a single 15V supply or from 15V and -15V and 5V supplies. Low power and small size per DAC make the DAC7734 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems and closed-loop servo-control.

.

Low power - 200mW maximum

.

Settling time - 10µs to 0.03% FSR

.

Double-buffered data inputs

.

Green product and no Sb/Br
