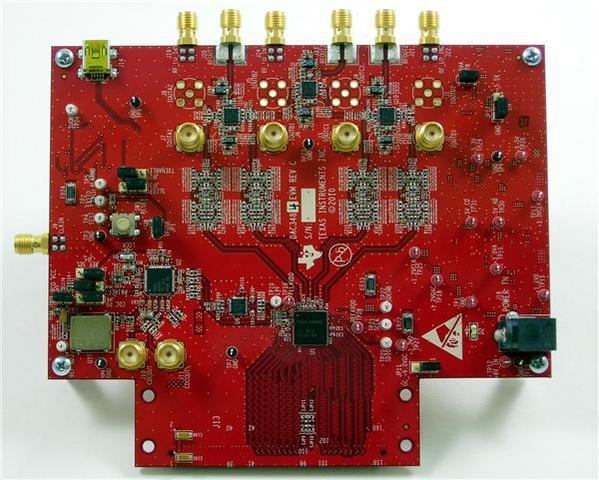

TEXAS INSTRUMENTS DAC3484EVM Evaluation Module, Digital to Analog Converter, 16Bit, 1.25GSPS, DAC3484
The is an evaluation module for DAC3484, ultra low power 16bit 1.25GSPS DAC with 8bit wide DDR LVDS data input, integrated 2x/4x/8x/16x interpolation filters, 32bit NCO and PLL and exceptional linearity at high IFs. The evaluation module provides a flexible environment to test the DAC3484 under a variety of clock, data input and IF or RF output conditions. For ease of use as a complete RF transmit solution the evaluation module includes the CDCE62005 clock generator/jitter cleaner for clocking the DAC3484 as well as a TRF370315, a 400MHz to 4GHz quadrature modulator, for up converting I/Q outputs from the DAC to real signals at RF. The evaluation module can be used along with TSW3100 to perform a wide range of test procedures. The TSW3100 generates the test patterns which are fed to the DAC3484 through a 1.25GSPS LVDS port. The evaluation module clock chip can be used to synchronize the TSW3100 board to evaluation module.
- .
- Comprehensive test capability for the DAC3484 for ZIF, IF and RF outputs
- .
- Direct connection to TSW3100 signal generator
- .
- Includes CDCE62005 for clock generation or jitter cleaning
- .
- Includes TRF370315 for complete transmitter evaluation
- .
- Software support with a full featured GUI for easy testing and prototyping
- .
- FMC-DAC-Adapter card compatible to connect with FMC interconnect headers available Xilinx FPGA EVMs
- .
- Direct compatibility with HSMC headers on Altera FPGA EVMs
