KEYSIGHT TECHNOLOGIES DSOX2EMBD 软件, 嵌入式串行触发分析升级
The is an embedded serial Triggering and Analysis I²C, SPI for InfiniiVision 2000 X-series displays responsive, time-aligned and on-screen decode of inter-integrated circuit I²C and 2-wire, 3-wire or 4-wire serial peripheral interface SPI serial communication busses. Because it is hardware-based, it provides the fastest throughput solution for triggering on and analysing I²C and SPI serial busses found in a wide variety of embedded designs. It can easily isolate serial packets to find sources of errors due hardware or software related problems. Use the automatic search and navigation capability to easily set up specific search criteria and then quickly navigate to found and marked events using the scopes front panel forward and back navigation keys.
- .
- Fastest throughput oscilloscope solution for triggering ON and analysing I²C and SPI serial busses
- .

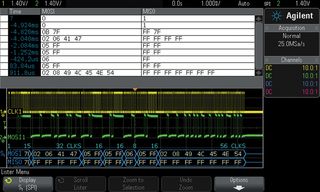

- On-screen serial decode time-correlated with the serial data waveforms
- .
- Protocol trigger and hardware-based protocol decode
