TEXAS INSTRUMENTS DAC7513N/250G4 数模转换器, 12 bit, 95 kSPS, 串行, 2.7V 至 5.5V, SOT-23, 8 引脚
The is a low-power single 12-bit buffered voltage output Digital-to-Analog Connector DAC with on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The DAC7513 uses a versatile 3-wire serial interface that operates at clock rates up to 30MHz and is compatible with standard SPI™, QSPI™, MICROWIRE™ and DSP interfaces. The DAC7513 requires an external reference voltage to set the output range of the DAC this allows the DAC7513 to be used in a multiplying mode. The DAC7513 incorporates a power-on reset circuit which ensures that the DAC output powers up at 0V and remains there until a valid write takes place to the device. The DAC7513 contains a power-down feature, accessed over the serial interface that reduces the current consumption of the device to 200nA at 5V. The low-power consumption of this part in normal operation makes it ideally suited to portable battery-operated equipment.
输出接口数 1
供电电流 115 µA
通道数 1
针脚数 8
位数 12
采样率 95 ksps
功耗 300 µW
过温保护 No
工作温度Max 105 ℃
工作温度Min -40 ℃
数模转换数DAC 1
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8

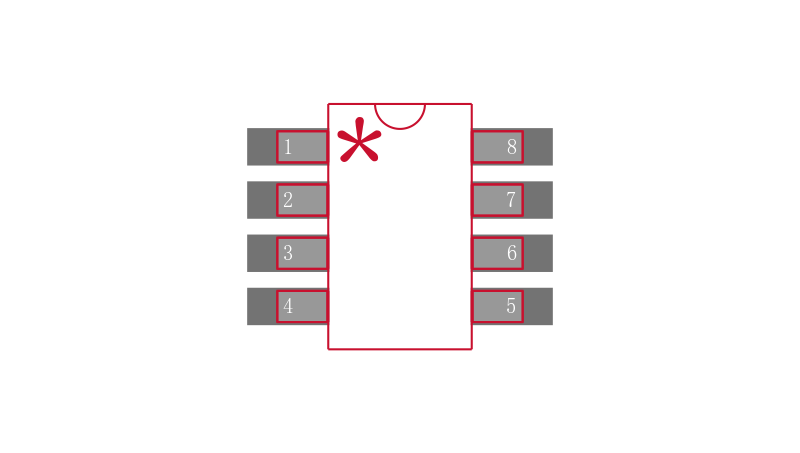

封装 SOT-23-8
高度 1.3 mm
封装 SOT-23-8
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 传感与仪器, 电机驱动与控制, 自动化与过程控制, 计算机和计算机周边, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DAC7513N/250G4 TI 德州仪器 | 当前型号 | 当前型号 |
DAC7513N/250 德州仪器 | 类似代替 | DAC7513N/250G4和DAC7513N/250的区别 |
DAC7513N/3K 德州仪器 | 类似代替 | DAC7513N/250G4和DAC7513N/3K的区别 |
TLC5615CD 德州仪器 | 功能相似 | DAC7513N/250G4和TLC5615CD的区别 |
