DAC904EG4

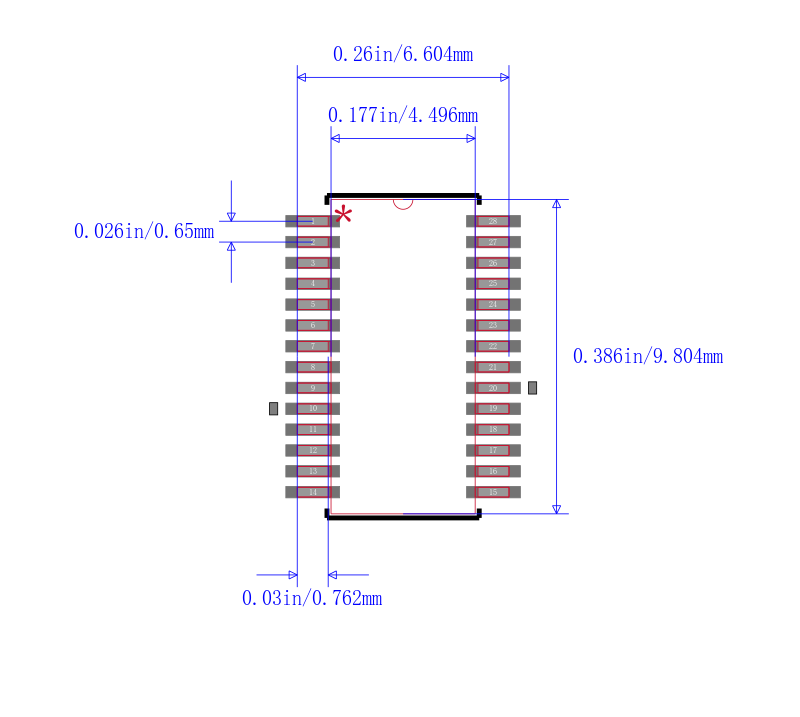

TEXAS INSTRUMENTS  DAC904EG4  数模转换器, 14 bit, 200 MSPS, 并行, 2.7V 至 5.5V, TSSOP, 28 引脚

The is a high-speed 14-bit Digital-to-analog Converter DAC offering a resolution option within the family of high-performance converters. The advanced segmentation architecture of the DAC904 is optimized to provide a high spurious-free dynamic range SFDR for single-tone, as well as for multi-tone signals-essential when used for the transmit signal path of communication systems. The DAC904 has a high impedance current output with a nominal range of 20mA and an output compliance of up to 1.25V. The differential outputs allow for both a differential or single-ended analog signal interface. The close matching of the current outputs ensures superior dynamic performance in the differential configuration, which can be implemented with a transformer. Utilizing a small geometry CMOS process, the monolithic DAC904 can be operated on a wide, single-supply range of 2.7 to 5.5V. Its low power consumption allows for use in portable and battery-operated systems.

.

Low glitch - 3pV-s

.

Adjustable full-scale range

.

Low power - 170mW at 5V

.

Green product and no Sb/Br
