QUAD串行接口低侧驱动器IC QUAD SERIAL INTERFACE LOW-SIDE DRIVER IC
The DRV8806 provides a 4-channel low-side driver with overcurrent protection. It has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
The DRV8806 can supply up to 2-A single channel on or 1-A all channels on continuous output current with adequate PCB heatsinking at 25°C.
A serial interface is provided to control the output drivers. Fault status can be read through the serial interface. Multiple DRV8806 devices can be chained together to use a single serial interface.
Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature, and faults are indicated by a fault output pin.

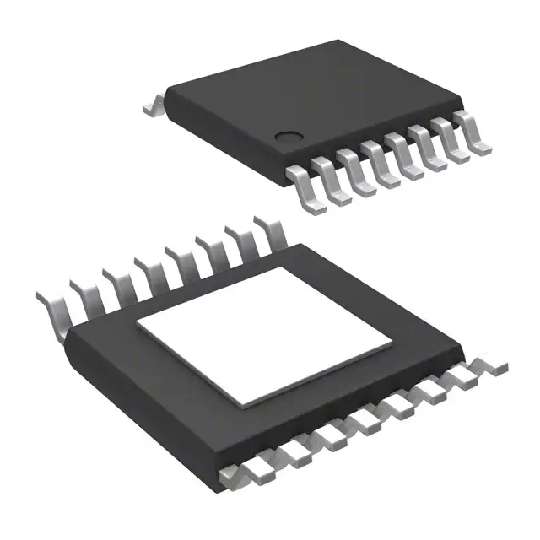

The DRV8806 is available in a 16-pin HTSSOP package Eco-friendly: RoHS & no Sb/Br.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DRV8806PWPR TI 德州仪器 | 当前型号 | 当前型号 |
DRV8806PWP 德州仪器 | 类似代替 | DRV8806PWPR和DRV8806PWP的区别 |
