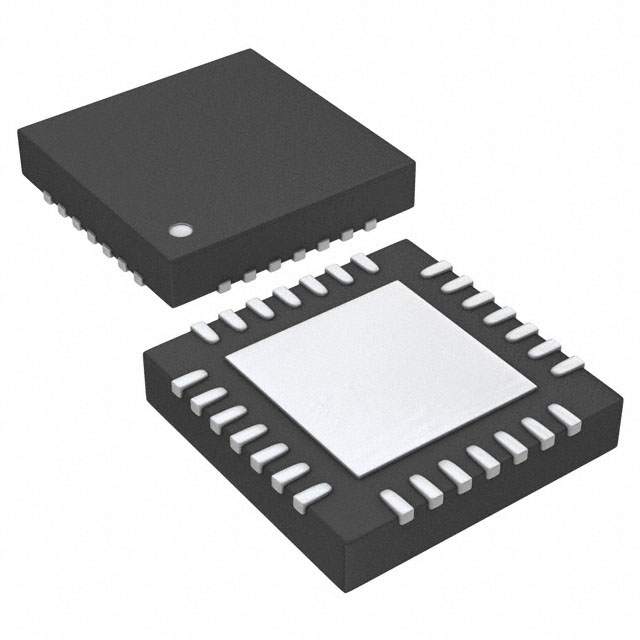

TEXAS INSTRUMENTS DRV8812RHDT 芯片, 电机驱动器, 半桥, 1.6A, VQFN-28
双极性 功率 MOSFET 并联 28-VQFN(5x5)
得捷:
IC MTR DRV BIPOLAR 8.2-45V 28QFN
立创商城:
DRV8812RHDT
德州仪器TI:
45-V, 1.6-A bipolar stepper or dual H-bridge motor driver with current regulation
e络盟:
电机驱动器, 半桥接器, 8V 至 45V电源, 24V/1.6A/1 输出, VQFN-28
艾睿:
This DRV8812RHDT stepper motor driver, developed by Texas Instruments, can help you increase automation for a wide variety of machines. With an output that has a voltage of 3.3 V, this is power management at its best. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a minimum operating supply voltage of 8.2 V and a maximum of 45 V. This motor controller has an operating temperature range of -40 °C to 85 °C.
安富利:
Dual H-Bridge Motor Driver 8.2V to 45V 28-Pin VQFN T/R
Verical:
Dual H-Bridge Motor Driver 28-Pin VQFN EP T/R
Newark:
# TEXAS INSTRUMENTS DRV8812RHDT MOTOR DRIVER, H-BRIDGE, 1.6A, VQFN-28
电源电压DC 8.00V min
输出接口数 1
输出电压 24 V
输出电流 1.6 A
针脚数 28
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 8.2V ~ 45V
电源电压Max 45 V
电源电压Min 8 V
安装方式 Surface Mount
引脚数 28
封装 VQFN-28
封装 VQFN-28
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DRV8812RHDT TI 德州仪器 | 当前型号 | 当前型号 |
DRV8812RHDR 德州仪器 | 类似代替 | DRV8812RHDT和DRV8812RHDR的区别 |
DRV8812PWPR 德州仪器 | 功能相似 | DRV8812RHDT和DRV8812PWPR的区别 |
DRV8812PWP 德州仪器 | 功能相似 | DRV8812RHDT和DRV8812PWP的区别 |
