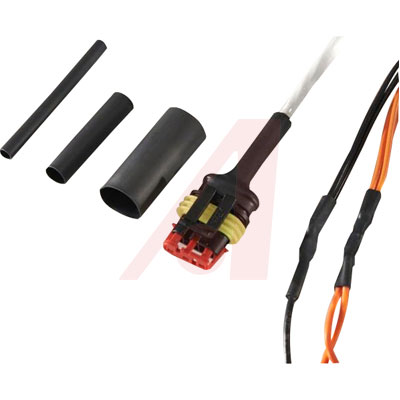

DWFR 双壁热缩管DWFR 系列双壁、高阻燃热缩管提供出色的机械和电气保护。 提供 3:1 或 4:1 收缩比，允许管道覆盖各种尺寸和基片系列。 热收缩还具有粘结内壁，增强密封性，并可更好的保护组件耐潮湿。 它可用于诸多应用，比如维修电缆护套、转换电缆的密封连接器和电缆与线束捆绑。 ### 特点和优势 双壁，粘性衬垫热收缩管 高度阻燃 提供 3:1 或 4:1 的收缩率 由高品质辐照聚烯烃制成 提供出色的电气绝缘和机械保护 最低收缩温度 60°C 在该系列中，提供 3mm 至 52mm 尺寸的管道 UL 认证 E35586。 UL 224 VW-1 汽车、家用电器、电气绝缘、机械保护、电缆捆绑和线束构建。 ### 阻燃

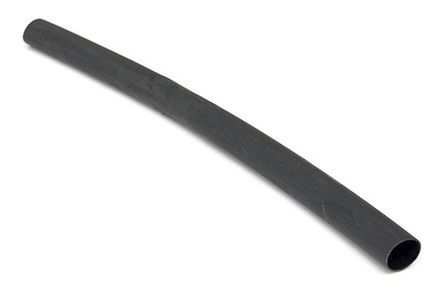

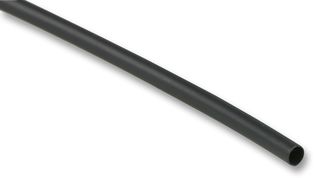

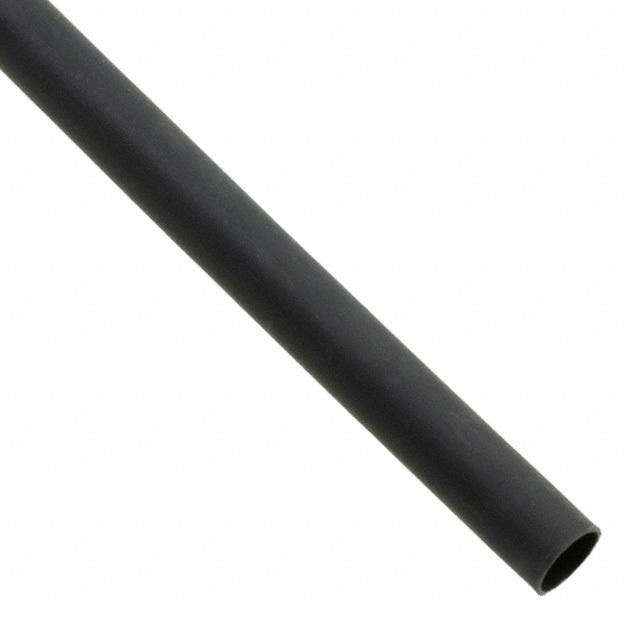

TE introduces DWFR, dual wall flame-retardant tubing, a new UL VW-1 rated heat shrink tubing. DWFR is a highly flame-retardant, high shrink ratio, dual wall tubing consisting of a polyolefin jacket and a thermoplastic inner adhesive wall. DWFR is the first dual wall tubing product from TE meeting the stringent requirements of UL 224 VW-1 for flammability. DWFR provides excellent electrical insulation as well as a moisture-resistant seal.
**Key Benefits **
* Help increase safety with UL VW-1 flammability rating
* Accommodate a wide range of cross-sectional profiles with high shrink ratios
* Utilize in a wide range of applications with a limited number of sizes
* Compatible with a broad range of materials due to unique adhesive bonding ability
* Help provide increased mechanical protection from abrasion and bending with irradiated polyolefin medium wall jacket
* Help prevent moisture ingress with moisture-resistant seal
