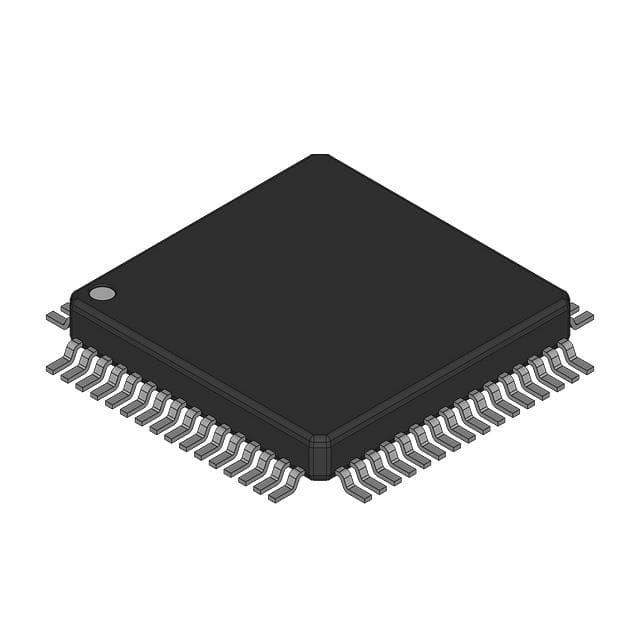

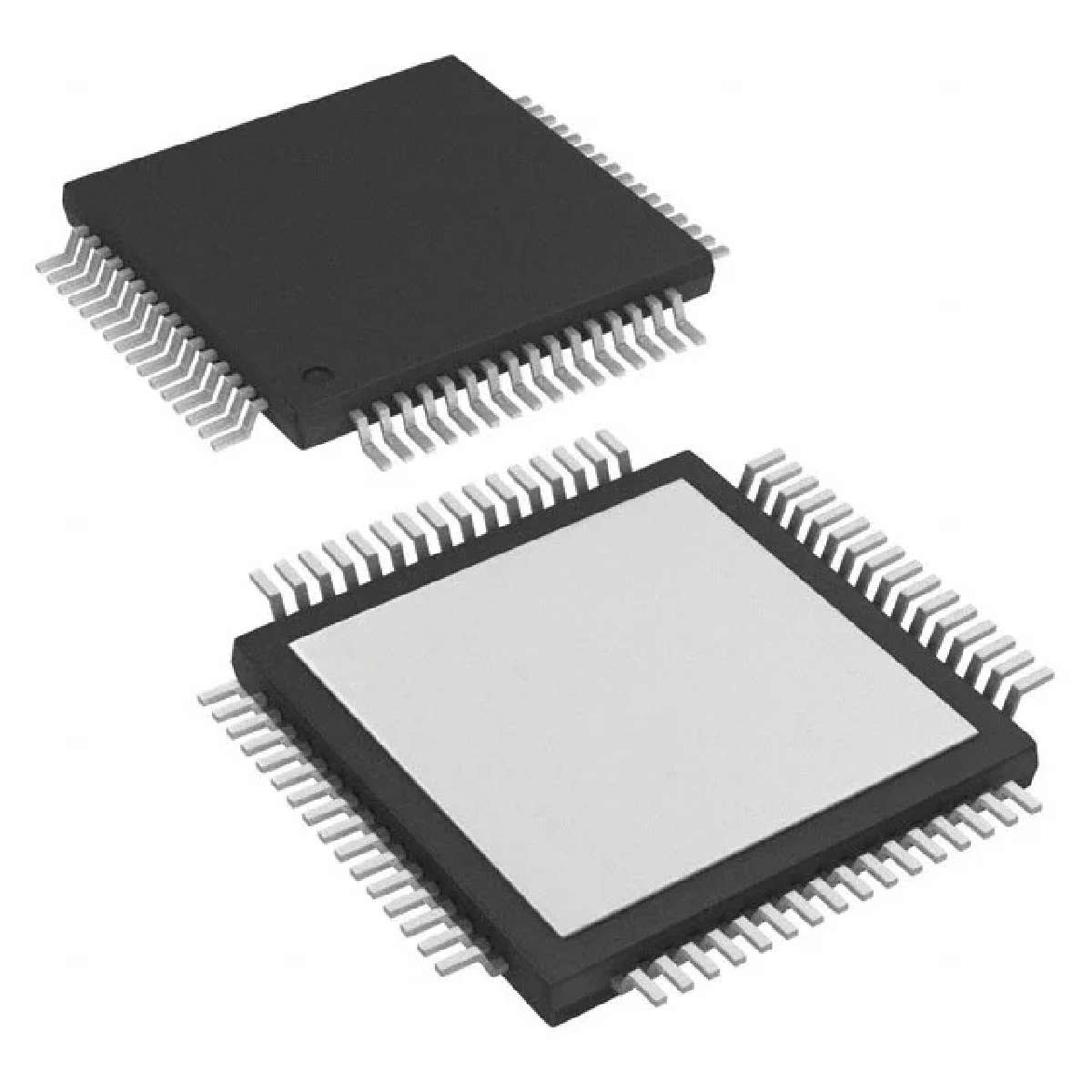

具有电流分流放大器和增强保护功能的汽车类 12V 电池三相栅极驱动器 64-HTQFP -40 to 125
The bridge driver is dedicated to automotive 3 phase brushless DC motor control including safety relevant applications. It provides six dedicated drivers for normal level N-Channel MOSFET transistors. The driver capability is designed to handle gate charges of 250 nC, and the driver source/sink currents are programmable for easy output slope adjustment. The device also incorporates sophisticated diagnosis, protection and monitoring features through an SPI interface. A boost converter with integrated FET provides the overdrive voltage, allowing full control on the power-stages even for low battery voltage down to 4.75 V.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DRV3201QPAPRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
DRV3201QPAPQ1 德州仪器 | 完全替代 | DRV3201QPAPRQ1和DRV3201QPAPQ1的区别 |
