DM74ALS14MX

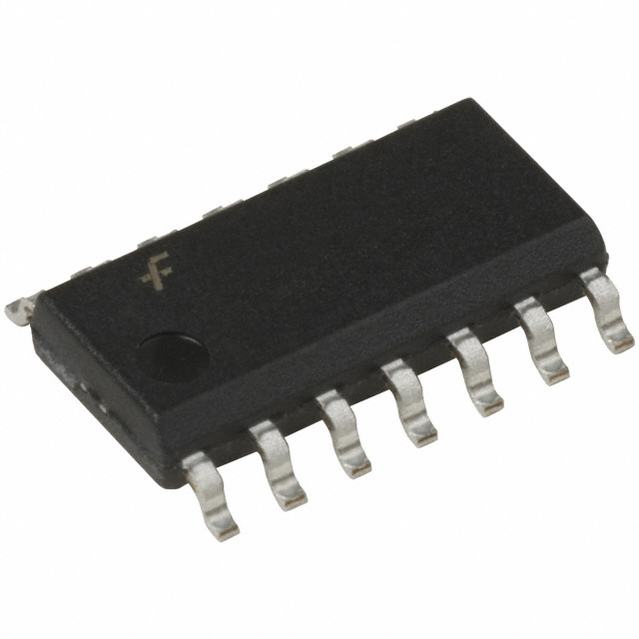

Inverter Schmitt Trigger 6Element Bipolar 14Pin SOIC

General Description

This device contains six independent gates, each of which performs the logic INVERT function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter-free output.

Features

■ Input hysteresis

■ Low output noise generation

■ High input noise immunity

■ Switching specification at 50 pF

■ Switching specifications guaranteed over full temperature and VCC range

■ Advanced oxide-isolated, ion-implanted Schottky TTL process

■ Functionally and pin-for-pin compatible with Schottky and low power Schottky TTL counterparts

■ Improved AC performance over low power Schottky counterpart
