DS1819AR-5+T&R

MAXIM INTEGRATED PRODUCTS  DS1819AR-5+T&R  芯片, 微处理器监控器, 5.5V, SOT-23-5

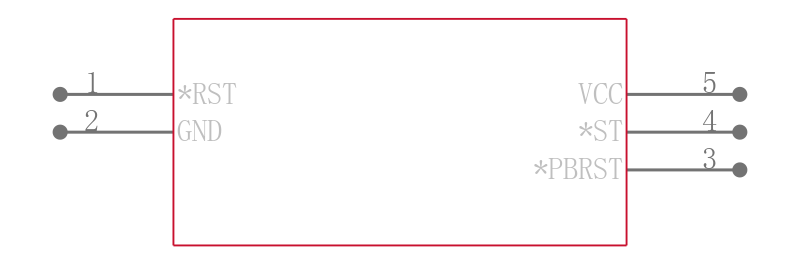

The DS1819AR-5+T&R is a 3.3V MicroMonitor in 5 pin SOT-23 package. This device monitors three vital conditions for microprocessor such as power supply, software execution and external override. A precision temperature compensated reference and comparator circuit monitors the status of VCC. When an out of tolerance condition occurs, an internal power fail signal forces reset to active state. The reset signal is kept in active state for a minimum of 140ms to allow power supply and processor to stabilize when VCC returns to an in tolerance condition. The DS1819A performs watchdog function. The watchdog is an internal timer that forces the reset signals to the active state if strobe input does not change state every 1.12 seconds. The watchdog timer function can be disabled by leaving the watchdog strobe input disconnected. It also performs pushbutton reset control. It debounces the pushbutton input and generates an active reset pulse width of 140ms minimum.

.

Supply voltage range from 1V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Halts and restarts an out of control microprocessor

.

Holds microprocessor in check during power transients

.

Automatically restarts microprocessor after power failure

.

Pin and function compatible with MAX823/24/25 devices

.

Eliminates the need for discrete components

.

VCC trip point is 3.15V and reset active time is 200ms

.

Accurate 5% microprocessor power monitoring and operating current of 8µA

.

Active-high, push-pull reset output
