双电阻器数字 PNP 晶体管,ROHM### Digital Transistors, ROHMResistor-equipped bipolar transistors, also known as Digital Transistors or Bias Resistor Transistors, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.

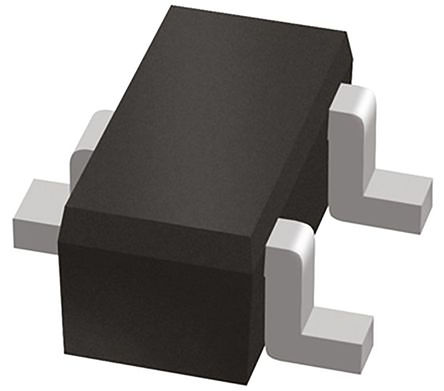

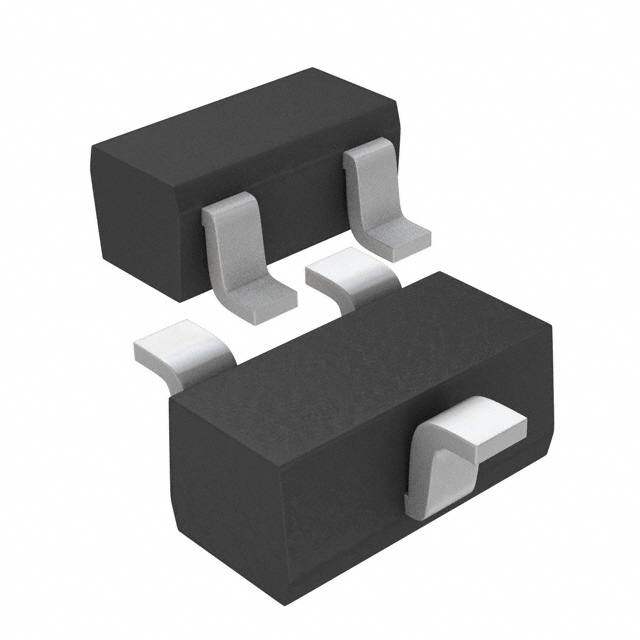

DTB513Z Series 12 V 500 mA 150 mW SMT PNP Digital Transistor - EMT-3
得捷:
TRANS PREBIAS PNP 150MW EMT3
欧时:
双电阻器数字 PNP 晶体管,ROHM### Digital Transistors, ROHM SemiconductorResistor-equipped bipolar transistors, also known as Digital Transistors or Bias Resistor Transistors, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
e络盟:
晶体管 双极预偏置/数字, 单路PNP, -12 V, -500 mA, 1 kohm, 10 kohm
艾睿:
Trans Digital BJT PNP 12V 500mA 3-Pin EMT T/R
Chip1Stop:
Trans Digital BJT PNP 500mA 3-Pin EMT T/R
Verical:
Trans Digital BJT PNP 12V 500mA 3-Pin EMT T/R
Win Source:
TRANS PREBIAS PNP 150MW EMT3
DeviceMart:
TRANS DGTL PNP 12V 500MA EMT3
额定功率 0.15 W
极性 PNP
耗散功率 0.15 W
击穿电压集电极-发射极 12 V
集电极最大允许电流 500mA
最小电流放大倍数hFE 140 @100mA, 2V
额定功率Max 150 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
增益带宽 260 MHz
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3
封装 SC-75-3
长度 1.7 mm
宽度 0.9 mm
高度 0.7 mm
封装 SC-75-3
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DTB513ZETL ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
DTB523YETL 罗姆半导体 | 完全替代 | DTB513ZETL和DTB523YETL的区别 |
DTB543ZETL 罗姆半导体 | 完全替代 | DTB513ZETL和DTB543ZETL的区别 |
DTB513ZMT2L 罗姆半导体 | 完全替代 | DTB513ZETL和DTB513ZMT2L的区别 |
