PNP 晶体管，ROHM ### Digital Transistors, ROHMResistor-equipped bipolar transistors, also known as Digital Transistors or Bias Resistor Transistors, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
双电阻器数字 PNP ，ROHM
### Digital Transistors,
Resistor-equipped bipolar transistors, also known as Digital Transistors or Bias Resistor Transistors, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
额定电压DC -50.0 V
额定电流 -500 mA
额定功率 0.2 W

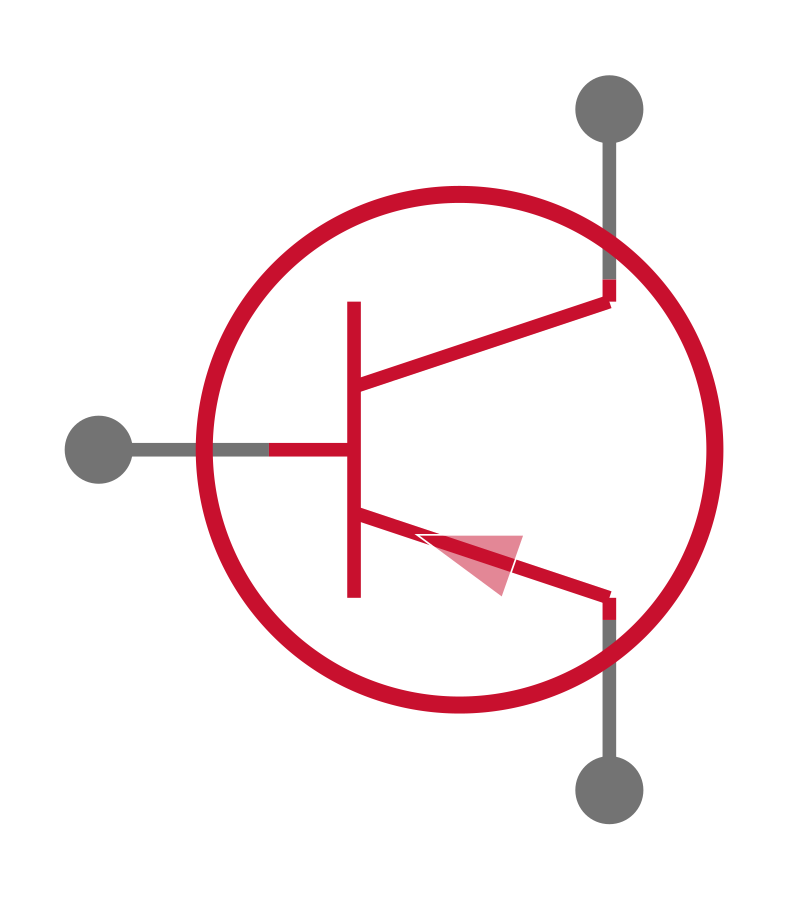

极性 PNP
耗散功率 0.2 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 500mA
最小电流放大倍数hFE 56 @50mA, 5V
最大电流放大倍数hFE 56
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
增益带宽 200 MHz
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3

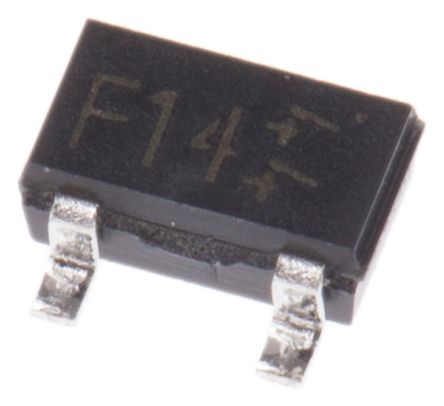

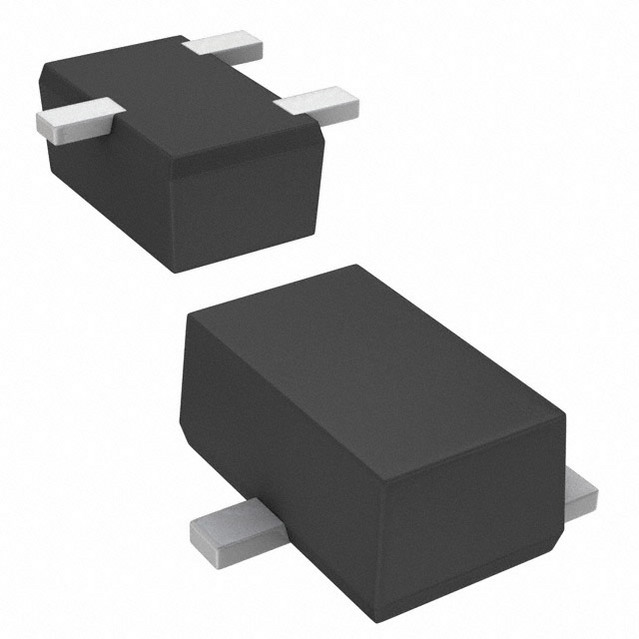

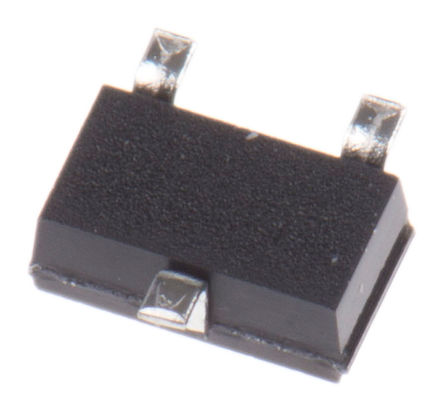

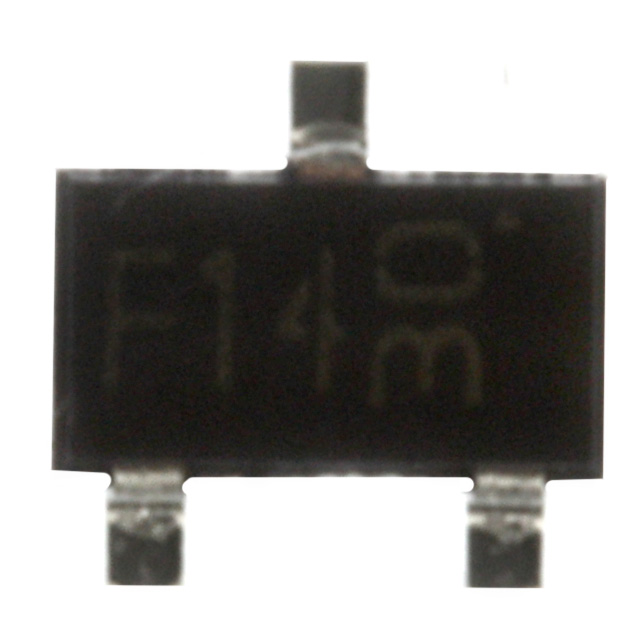

封装 SC-59-3
长度 2.9 mm
宽度 1.6 mm
高度 1.1 mm
封装 SC-59-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DTB114EKT146 ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
DTB123YKT146 罗姆半导体 | 类似代替 | DTB114EKT146和DTB123YKT146的区别 |
DTA124TKAT146 罗姆半导体 | 类似代替 | DTB114EKT146和DTA124TKAT146的区别 |
DTC144TUAT106 罗姆半导体 | 功能相似 | DTB114EKT146和DTC144TUAT106的区别 |
