DTC123JET1

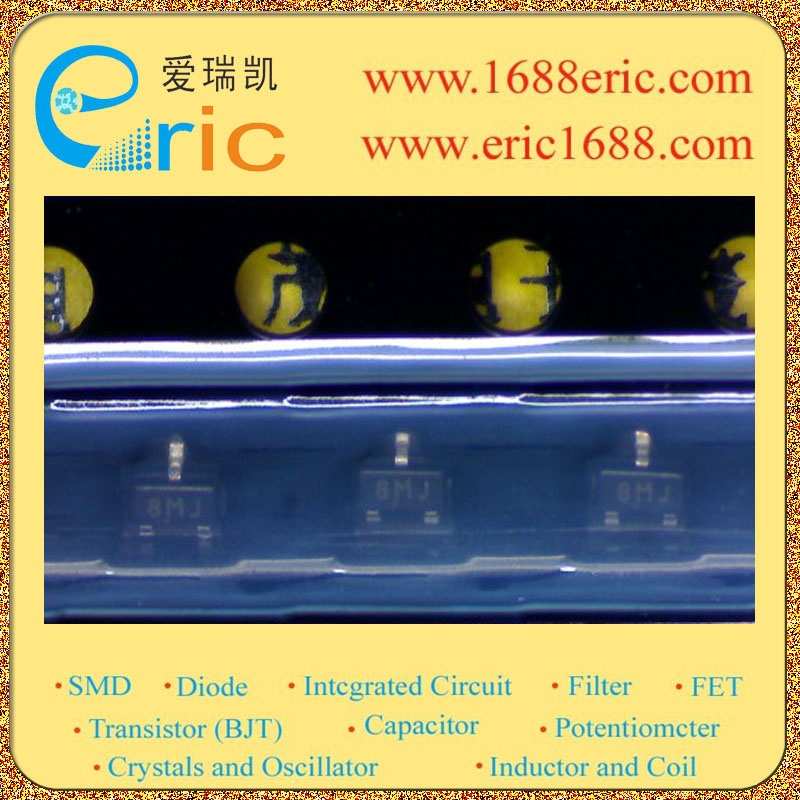

DTC123JET1 带阻NPN三极管 50V 100mA/0.1A 2.2k 47k 增益80 SOT-523 marking/标记 8M

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| 50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| 50V 集电极连续输出电流IC Collector CurrentIC| 100mA/0.1A 基极输入电阻R1 Input ResistanceR1| 2.2KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 47KΩ/Ohm 电阻比R1/R2 Resistance Ratio| 0.47 直流电流增益hFE DC Current GainhFE| 80 截止频率fT Transtion FrequencyfT| 耗散功率Pc Power Dissipation| 0.2W/200mW Description & Applications| Features • Simplifies Circuit Design • Reduces Board Space • Reduces Component Count • The SC–75/SOT–416 package can be soldered using wave or reflow. The modified gull–winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die. • Available in 8 mm, 7 inch/3000 Unit Tape & Reel 描述与应用| 特性 •简化电路设计 •缩小板级空间 •减少元件数量 •SC-75/SOT-416包装可以使用波或回流焊接。修改后的鸥翅引线在焊接热应力吸收消除模具损坏的可能性。 •可在8毫米，7 inch/3000单位带和卷轴
