DTA123JET1

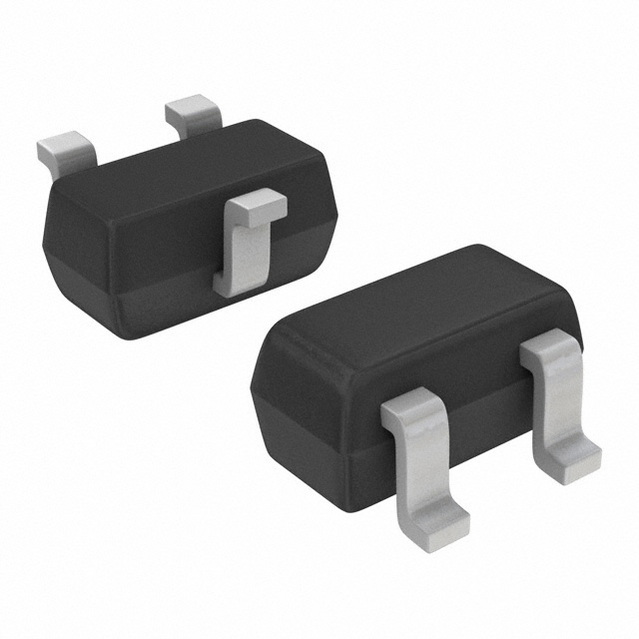

DTA123JET1 带阻尼PNP三极管 -50V -100mA/-0.1A 0.15W/150mW SOT-523/SC-75 标记6M 开关电路，逆变器，接口电路，驱动电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -50V

\---|---

集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -50V

集电极连续输出电流IC Collector CurrentIC| -100mA/-0.1A

基极输入电阻R1 Input ResistanceR1| 2.2KΩ/Ohm

基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 47KΩ/Ohm

电阻比R1/R2 Resistance Ratio| 0.047

直流电流增益hFE DC Current GainhFE|

截止频率fT Transtion FrequencyfT| 250MHz

耗散功率Pc Power Dissipation| 0.15W/150mW

Description & Applications| Features •Built-In Biasing Resistors •Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors see equivalent circuit. •The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects. •Only the on/off conditions need to be set for operation, making the circuit design easy. •Complementary NPN Types :DTC123J series •Complex transistors :EMB10/ UMB10N/ IMB10A Inner circuit / EMA5/ UMA5N/ FMA5A （PNP type） •Lead Free/RoHS Compliant. Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

描述与应用| 特点 •内置偏置电阻 •内置偏置电阻，可配置逆变电路没有连接外部 输入电阻（见等效电路）。 •偏置电阻组成的薄膜电阻完全隔离，允许负偏置输入的。它们还具有的优点是完全消除了寄生效应。 •只有开/关条件需要设置操作，使得电路的设计容易。 •互补NPN类型：DTC123J系列 •复杂的：EMB10 UMB10N// IMB10A的内部电路                          / EMA5/ UMA5N的/ FMA5A的（PNP型） •无铅/ RoHS标准。 应用 开关电路，逆变电路，接口电路，驱动器电路
