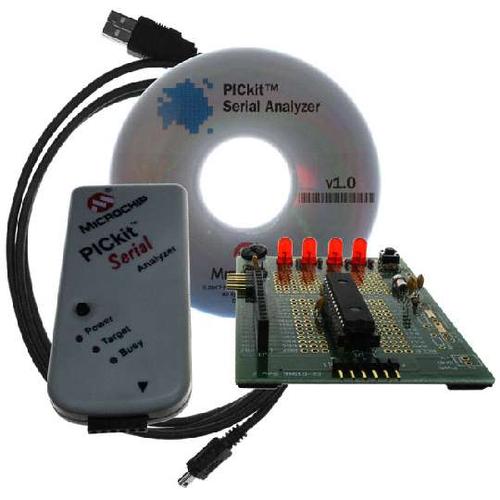

MICROCHIP DV164122 分析仪套件, 串口, PICKIT
The 是一个PICkit serial analyser. The PICkit serial analyser simplifies the chore of managing serial 通讯 with a设备under test. The Windows user 接口provided configures the 硬件和scripts 通讯 with the目标设备. Scripts created within the 软件GUI are saved to an 内部library 用于future use. Once created, scripts can be conveniently assigned to push 按钮or simply executed directly from the library index. All 通讯 data和events are posted to a transaction window in a readable format. The 28引脚Demo电路板包括a PIC16F886, switch, LEDs, 连接器 用于the PICkit Serial和ample 原型区域. The处理器 contains演示 firmware supporting I2C 通讯和emulation of three I2C设备EEPROM, ADC和real time clock. The PICkit serial analyser是一个低成本 USB based工具used to direct 通讯 between a PC和an外部serial设备.
- .
- I2C主接口功能
- .
- I2C从接口功能
- .
- SPI主接口
- .
- USART异步通讯
- .
- USART同步通讯
- .
- LIN 外部固件 需要满足电气规范要求
- .
- 微导线通讯
