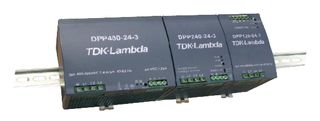

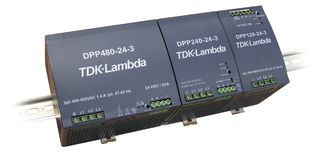

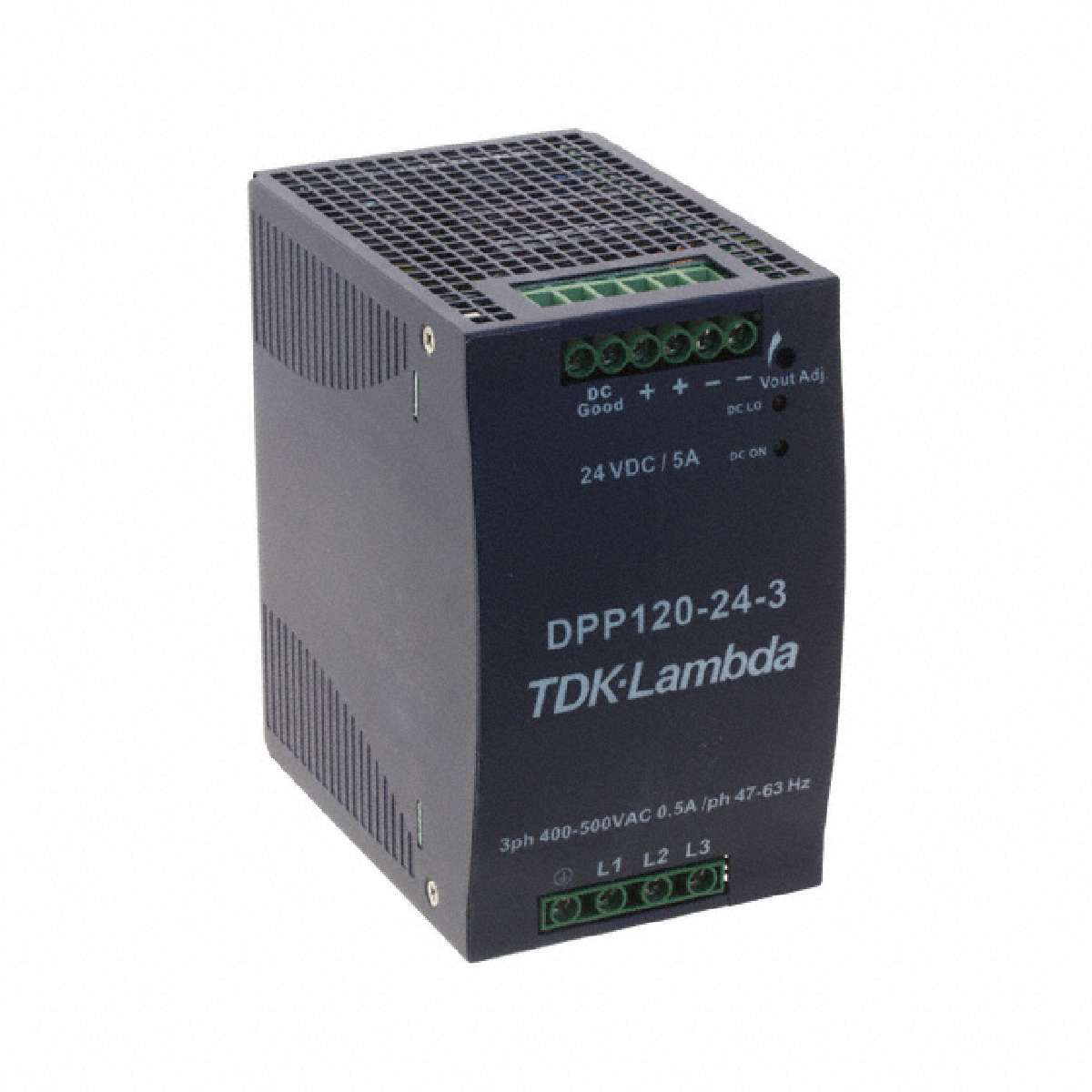

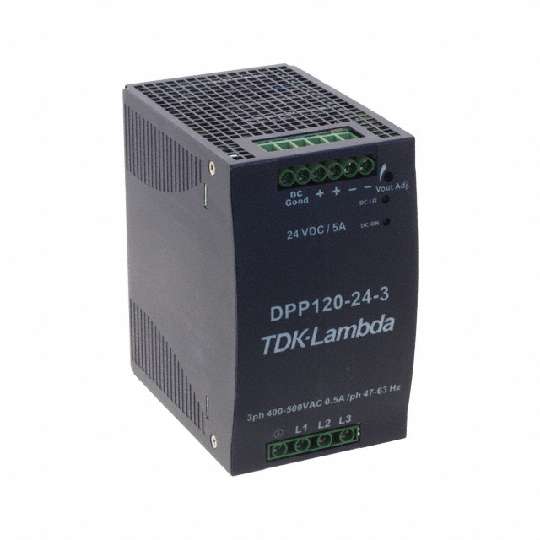

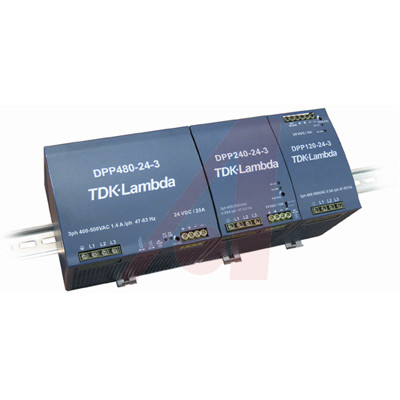

TDK LAMBDA DPP120-24-3 交流/直流电源, DIN轨, 有源PFC, 固定/可调, 340 V, 575 V, 120 W, 24 V, 5 A
The is a 1-output DIN rail mount AC/DC Power Supply with universal input. The DPP120 series power supply supports global use, has easier system configuration and easy system integration. It is ideal for use in chemical processing, burn in and test applications.
- .
- Over temperature protection
- .
- Compact in size
- .
- Convection cooling method
- .
- Metal case, enclosed construction
- .
- 527,000 hours MTBF
- .
- 70kHz Switching frequency
频率 47Hz ~ 63Hz
额定功率 120 W
输出接口数 1
输出电压 24 V
输出电流 5 A
输出功率 120 W
隔离电压 3 kV
输入电压DC Max 820 V
输入电压DC Min 480 V
输入电压AC Max 575 v
输入电压AC Min 340 v
输出电流Max 5 A
输入电流Min 0.36 A
输出功率Max 120 W
工作温度Max 71 ℃
工作温度Min -40 ℃
额定电压 24 V
输入电压AC 340V ~ 575V
输入电压 340VAC ~ 575VAC
安装方式 DIN Rail
引脚数 10
封装 120
长度 5.22 in
宽度 1.97 in
高度 0.98 in
封装 120
工作温度 -40℃ ~ 71℃
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, Sensing & Instrumentation, 车用, 测试与测量, 电机驱动与控制, Automation & Process Control, Automotive, ITE（商业）, 传感与仪器, Power Management, 电源管理, Motor Drive & Control, 自动化与过程控制, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
