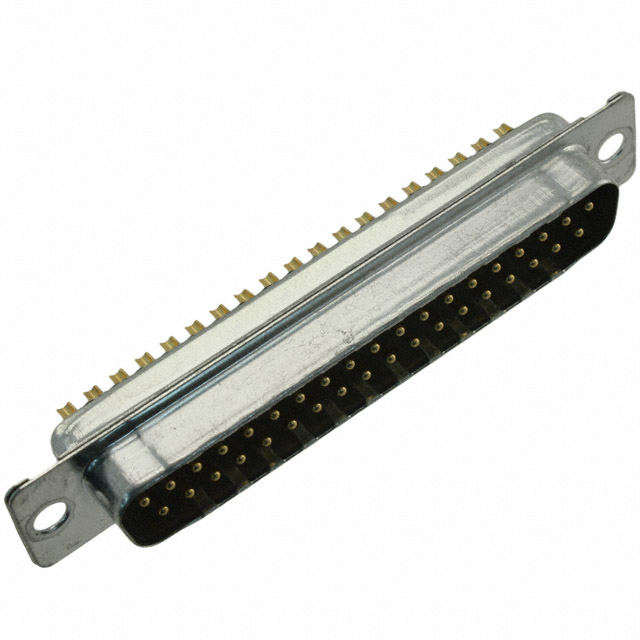

DC-37P-K87

ITT CANNON  DC-37P-K87  连接器, D sub, 堆叠式, D*系列, DC, 插头, 37 触点, 金属主体, 焊接

The is a 37-way standard Solder D-sub Plug with gold flash copper alloy contacts, tin-plated steel shell and a black thermoplastic insulator. The D series high-performance connector provides maximum flexibility and performance for applications requiring discrete solder terminations and field repair without termination tooling.

.

7.5A at 85°C/5A at 105°C Current rating

.

1200VAC at sea level Dielectric withstanding voltage

.

50 Mating cycles

.

-55 to +125°C Operating temperature range

.

UL94V-0 Flammability rating
