DMB-4773

BUD INDUSTRIES  DMB-4773  外壳, DIN轨安装, ABS塑料, 浅灰色

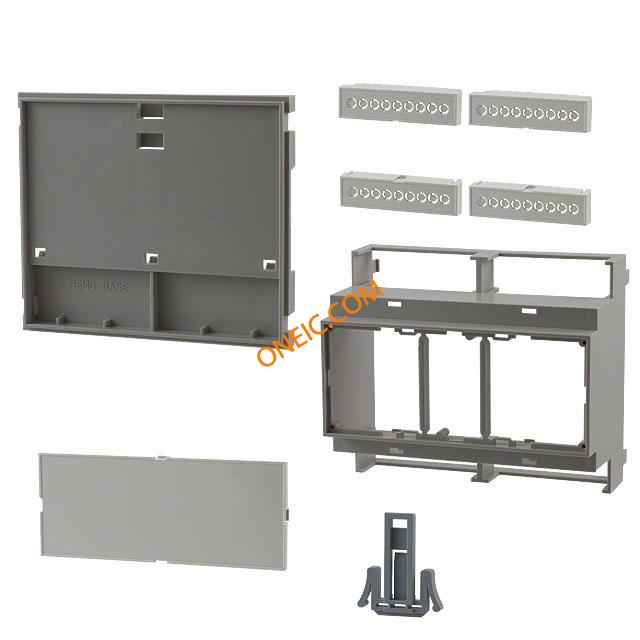

The is a gray DIN rail mount Multi-board Box made of ABS acrylonitrile butadiene styrene and PC polycarbonate. Snap-in multiple board capacity with easy access to board terminals, three levels of PC board mounting locations and bottom level accepts PC board with modular type terminals on 0.2-inch centers. Fits standard 35mm DIN rail.

.

Removable terminal guards have snap-off tabs to match number of terminals used

.

Snap-fit design allows tool-less assembly of all parts including PC boards

.

Snap-fit front cover is easily removable for machining or silk-screening

.

-20 to 70°C Service temperature range

.

UL94V-0 Flammability rating
