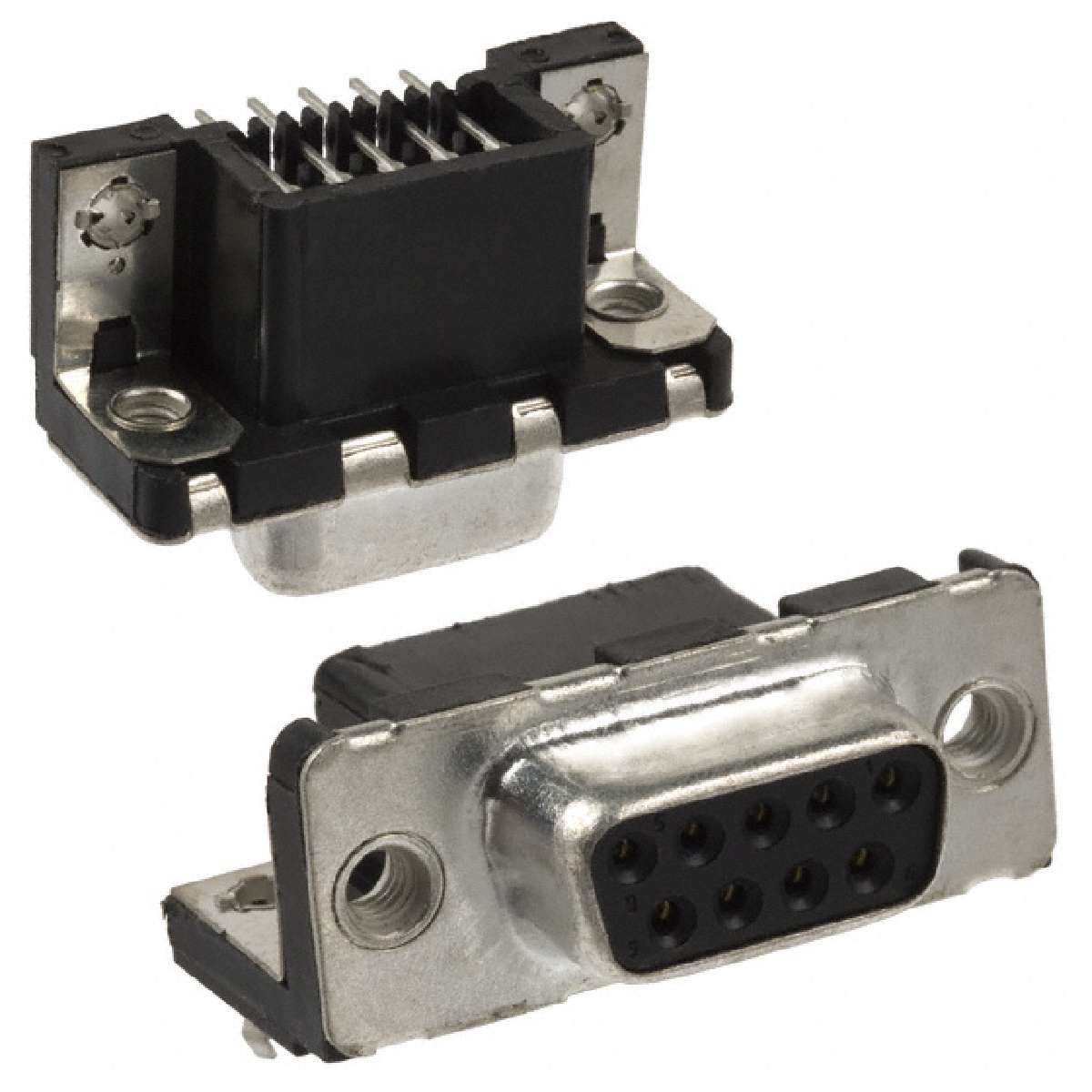

AMPHENOL FCI D09S13A4GX00LF 连接器, D sub, 堆叠式, Delta D系列, DE, 插座, 9 触点, 焊接

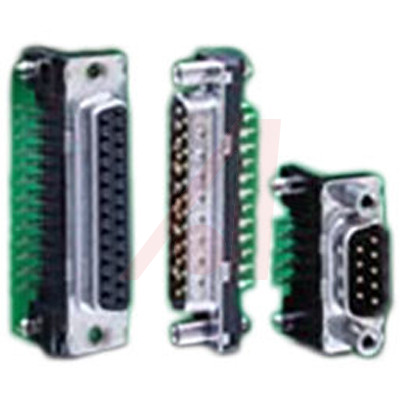

FCI"s D-Subminiature connectors are part of an industry standard for applications requiring robust and reliable connectors. These proven D-Subminiature connectors are one of the most popular Input — Output interconnects, addressing a wide variety of applications in Telecommunications, Data, Consumer, Industrial, military, Instrumentation and Medical. Since many years FCI has been offering a wide range of D-Subminiature connectors to meet various design requirements including those in harsh environment.
触点数 9
极性 Female
触点电镀 Gold
额定电流 5 A
排数 2
易燃性等级 UL 94 V-0
针脚数 9
拔插次数 200
额定电压 300 V
工作电压Max 300 VAC
安装方式 Through Hole
引脚间距 2.74 mm
长度 30.81 mm
宽度 20.82 mm
高度 13.48 mm
引脚间距 2.74 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
制造应用 Computers & Computer Peripherals, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
D09S13A4GX00LF FCI Electronics 法马通 | 当前型号 | 当前型号 |
FCE17-E09SB-440 安费诺 | 类似代替 | D09S13A4GX00LF和FCE17-E09SB-440的区别 |
FCE17-E09SB-410 安费诺 | 类似代替 | D09S13A4GX00LF和FCE17-E09SB-410的区别 |
ZDE9S1AKN146 ITT电子 | 类似代替 | D09S13A4GX00LF和ZDE9S1AKN146的区别 |
