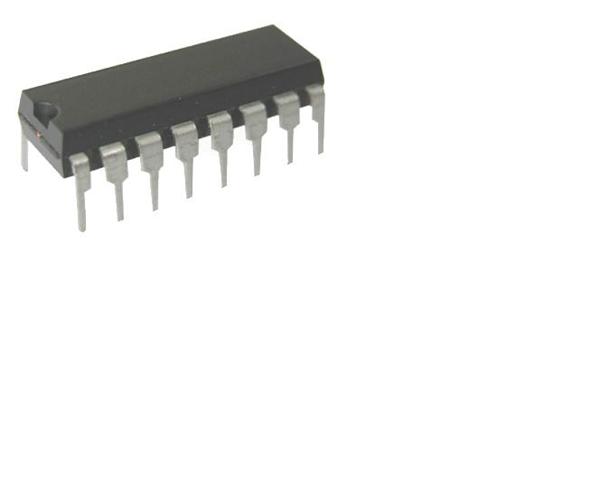

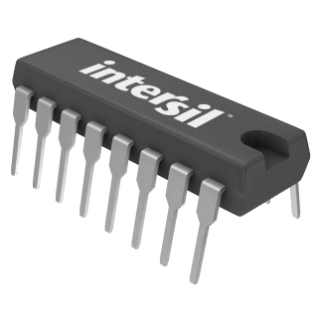

INTERSIL  DG442DJZ  模拟开关, 四通道, SPST, 4 放大器, 85 ohm, 5V 至 34V, DIP, 16 引脚

The is a single-pole single-throw SPST monolithic quad CMOS Analog Switch drop-in replacements for the popular DG201A and DG202 series devices. It includes four independent single-pole single-throw SPST analog switches, TTL and CMOS compatible digital inputs and a voltage reference for logic thresholds. This switch features lower analog ON resistance <250ns compared to the DG201A and DG202. Charge injection has been reduced, simplifying sample and hold applications. The improvements in this series switch are made possible by using a high voltage silicon-gate process. An epitaxial layer prevents the latch-up associated with older CMOS technologies. The 44V maximum voltage range permits controlling 40VP-P signals. Power supplies may be single ended from 5 to 34V, or split from ±5 to ±20V. The four switches are bilateral, equally matched for AC or bidirectional signals. The ON resistance variation with analog signals is quite low over a ±5V analog input range.

.

Low charge injection

.

TTL/CMOS Compatible

.

Single or split supply operation

.

Fast switching action
