MURATA DE2F3KH103MA3B 陶瓷抗干扰电容器, Disc, DE2系列, 0.01 µF, ± 20%, X1 / Y2, 250 V, 250 V
The is a radial leaded safety standard certified Ceramic Capacitor with vertical crimp long lead, coated with flame-retardant epoxy resin conforming to UL94V-0 standard. Class X1/Y2 capacitors which are certified by UL/CSA/VDE/BSI/SEMKO/DEMKO/FIMKO/NEMKO/ESTI/NSW. Ideal for use as X/Y capacitors for AC line filter and primary-secondary coupling on switching power supplies and AC adapters.
- .
- 2600VAC Dielectric strength
Do not use these products in any automotive power train or safety equipment including battery chargers for electric vehicles and plug-in hybrid.
额定电压DC 250 V
额定电压AC 250 V
工作电压 250 VAC
电容 10000 pF
容差 ±20 %
电介质特性 F
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 250 V
安装方式 Through Hole
引脚数 2

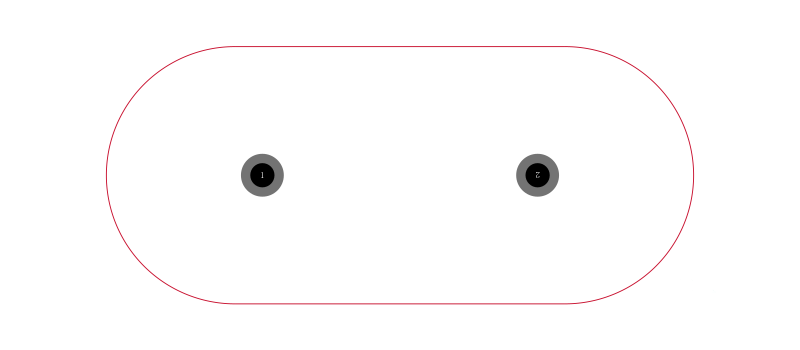

封装 Radial, Disc
引脚间距 7.5 mm
长度 16 mm
宽度 16 mm
高度 7 mm
直径 16.0 mm
脚长度 25.0 mm
封装 Radial, Disc
引脚间距 7.5 mm
厚度 7 mm
材质 F
工作温度 -25℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Bulk
制造应用 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 PB free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DE2F3KH103MA3B muRata 村田 | 当前型号 | 当前型号 |
DE2F3KH103MN7A 村田 | 类似代替 | DE2F3KH103MA3B和DE2F3KH103MN7A的区别 |
DE2F3KY103MA3BM02F 村田 | 类似代替 | DE2F3KH103MA3B和DE2F3KY103MA3BM02F的区别 |
VY2103M63Y5US63V7 威世 | 功能相似 | DE2F3KH103MA3B和VY2103M63Y5US63V7的区别 |
