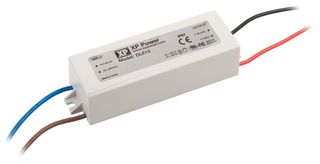

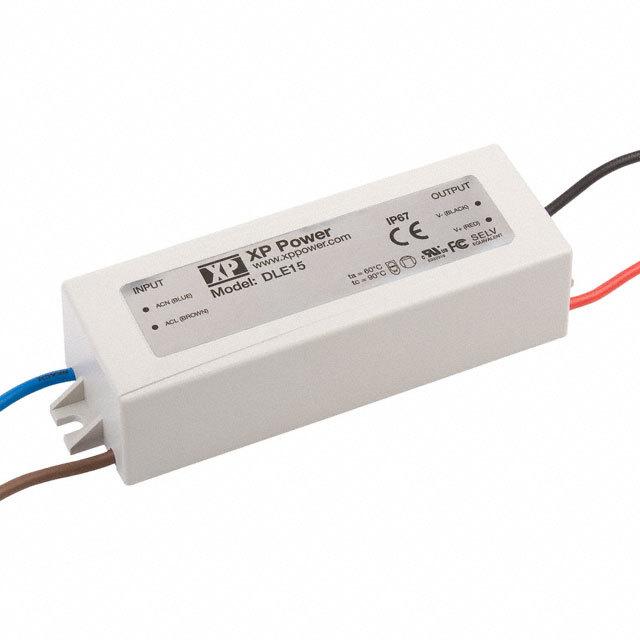

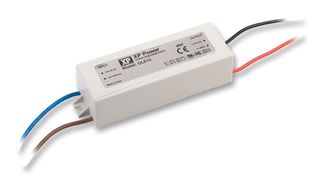

XP POWER DLE15PS700-A 交流/直流发光二极管电源, 恒流, DLE系列, 90 VAC, 264 VAC, 15 W, 700 mA, 22 V
The DLE series 15W AC/DC Power Supply with driver. It features overload and short-circuit safety protections.
- .
- Constant voltage operation
- .
- High power factor
- .
- High efficiency
- .
- Waterproof to IP67
得捷:
LED DRIVER CC AC/DC 14-22V 700MA
e络盟:
LED驱动器, 恒流, 15 W, 22 V, 700 mA, 恒定电流, 90 VAC
Allied Electronics:
Power Supply; LED SUPPLY CC AC/DC 14-22V 700MA
Newark:
# XP POWER DLE15PS700-A AC/DC LED Power Supply, Constant Current, DLE Series, 90 VAC, 264 VAC, 15 W, 700 mA, 22 V
额定功率 15 W
输出接口数 1
输出电压 14V ~ 22V
输出电流 700 mA
输出功率 15 W
隔离电压 3.75 kV
输入电压Max 264 VAC
输入电压Min 90 VAC
输出电压Max 22 V
输出电流Max 700 mA
输出功率Max 15 W
安装方式 Chassis
工作温度 -20℃ ~ 70℃
产品生命周期 Active
制造应用 工业, 电源管理, Industrial, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
