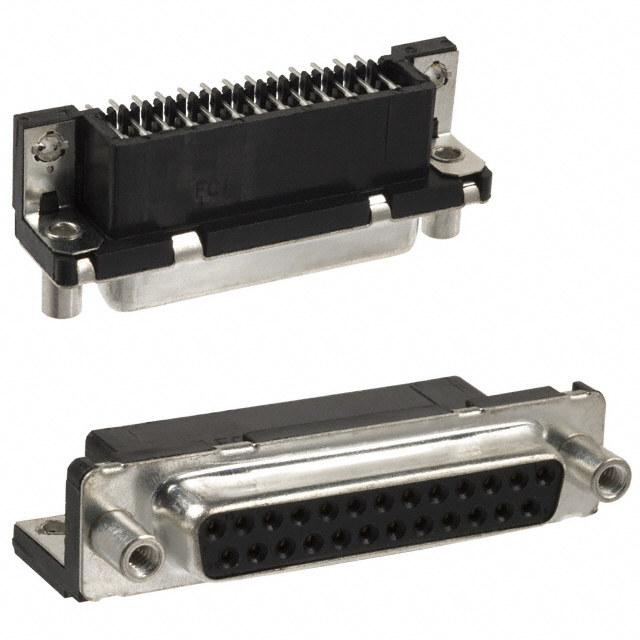

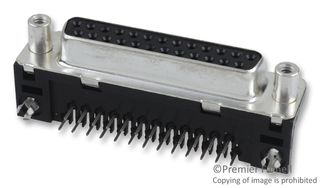

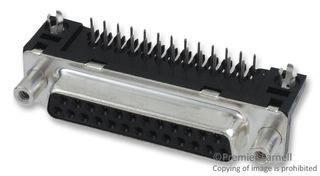

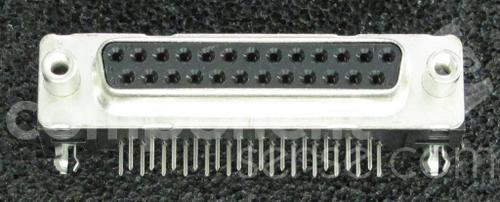

AMPHENOL FCI D25S33E4GV00LF 连接器, D-SUB, 母, 25路
FCI"s D-Subminiature connectors are part of an industry standard for applications requiring robust and reliable connectors. These proven D-Subminiature connectors are one of the most popular Input — Output interconnects, addressing a wide variety of applications in Telecommunications, Data, Consumer, Industrial, military, Instrumentation and Medical. Since many years FCI has been offering a wide range of D-Subminiature connectors to meet various design requirements including those in harsh environment.
触点数 25
极性 Female
触点电镀 Gold
额定电流 5 A
排数 2
易燃性等级 UL 94 V-0
针脚数 25
拔插次数 200
额定电压 300 V
工作电压Max 300 VAC
安装方式 Through Hole
引脚间距 2.76 mm
长度 53.03 mm
宽度 18.77 mm
高度 12.58 mm
引脚间距 2.76 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
D25S33E4GV00LF FCI Electronics 法马通 | 当前型号 | 当前型号 |
D25S13A4GV00LF 法马通 | 完全替代 | D25S33E4GV00LF和D25S13A4GV00LF的区别 |
6E17C025SAJ120 安费诺 | 类似代替 | D25S33E4GV00LF和6E17C025SAJ120的区别 |
FCE17-B25SA-440 安费诺 | 类似代替 | D25S33E4GV00LF和FCE17-B25SA-440的区别 |
