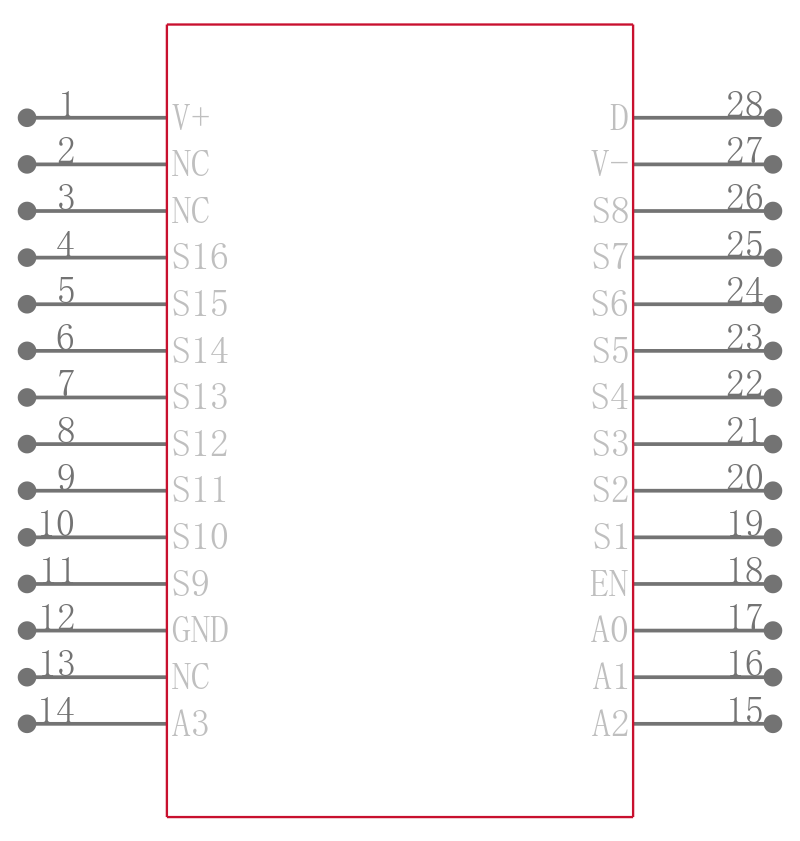

DG406DY

16路CMOS模拟转换开关

The DG406 and DG407 monolithic CMOS analog multiplexers are drop-in replacements for the popular DG506A and DG507A series devices. They each include an array of sixteen analog switches, a TTL and CMOS compatible digital decode circuit for channel selection, a voltage reference for logic thresholds, and an ENABLE input for device selection when several multiplexers are present.

Features

• ON-Resistance Max. . . . . . . . . . . . . . . . . . . . . . . .  100Ω

• Low Power Consumption PD . . . . . . . . . . . . . . . <1.2mW

• Fast Transition Time Max . . . . . . . . . . . . . . . . . . . . 300ns

• Low Charge Injection

• TTL, CMOS Compatible

• Single or Split Supply Operation

• Pb-Free Plus Anneal Available RoHS Compliant

Applications

• Battery Operated Systems

• Data Acquisition

• Medical Instrumentation

• Hi-Rel Systems

• Communication Systems

• Automatic Test Equipment
